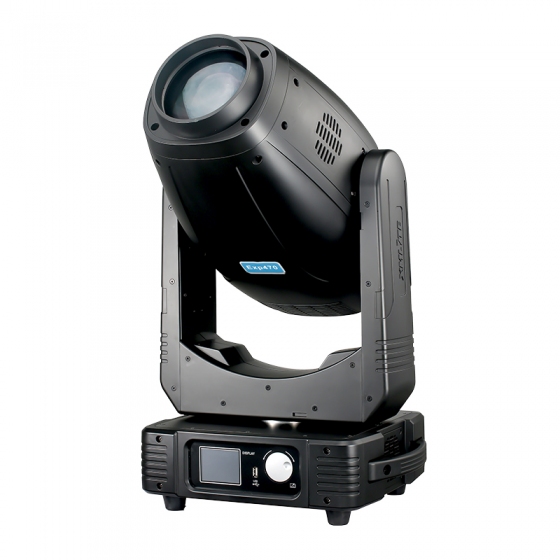

  • 470W LED moving head profileBack

  • Model: Exp470
  • Voltage:  AC180-240V,50/60Hz;
  • Bulb model: 600W White LED Engine ;
  • Wffect wheel:
  • Color wheel: 7 fix colors+white+CMY+CTO.CT:2800-5600K
  • Gobo: Fixed gobo : 8 gobo + white.
  • Power:  700W
  • IP lever: IP 20
  • Voltage:
  • Size: 32KG
  • Function: 855x485x505 mm
  • Carton size:
  • {$title}

Exp600 is a small and light full-function LED profile moving head lights. High-efficiency white LED module light source, optical zoom angle 6~42°; two pattern wheels, one rotating 6+1, fixed pattern 8+1; CMY infinite color mixing, fixed color 6+1, CTO linear color temperature; four-piece type Cutting system, the cutting pattern can be turned 180°.


XMLITE LED moving head lights has been online since 2017. After years of running-in and improvement, the products are mature and stable. The LED profile movinghead series has a complete product line, in addition to Exp600, there are also the following models:

800W spot profile moving head lights【H9】
1000W spot  profile moving head lights【Exp1000】
800W spot  profile moving head lights【H12】
580W facelight profile moving head lights【XF580】
_______________________________________________________
*Below is LED lamp source,CRI is optional ,

LED profile moving head light, led framing moving head light

 before place order,pls mark it .

Click here for video of EXP470

Click here for all XMLITE video

Modle:Exp600( 470 HAVE UPDATE TO 600)

Channels Mode 37/41CH;

Light Source
Lamp: 600W White LED Engine ;
Life time:20000 hours;
Light Source Luminous Flux:30000;

Optical System
Beam angel : 6~42°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable

Gobo Wheels
Fixed gobo :   8 gobo + white.
Rotation gobo:  6 gobo+ white,changeable;

Color Wheels
7 fix colors+white+CMY+CTO.CT:2800-5600K

Prism System
Prism:  4 facet prism ,Frost function;

Framing System
Cut: 4 plates.Aftercut,the pattern canrotation 180°
Position lock system: Magnetism positionlock system

Control & Screen
Display: 2.8 inch  screen display, canreverse 180°;

Connector can set dmx address with power and upgrade the software.

Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 700W;

PAN & TILT
Pan : 540°;  8Bit/16Bit ;
Tilt :  270°;  8Bit/16Bit ;

Size & Weight
Product size:  410x310x740mm;
Carton box: 860x490x510 mm;
N.W: 32KG ;
G.W: 65 KG(with flycase 1 in 1).


1.Power Cables
2.safety cable
3.User manual
4.Hooks
5.Flycase(optional)
6.Raincover(optional)
