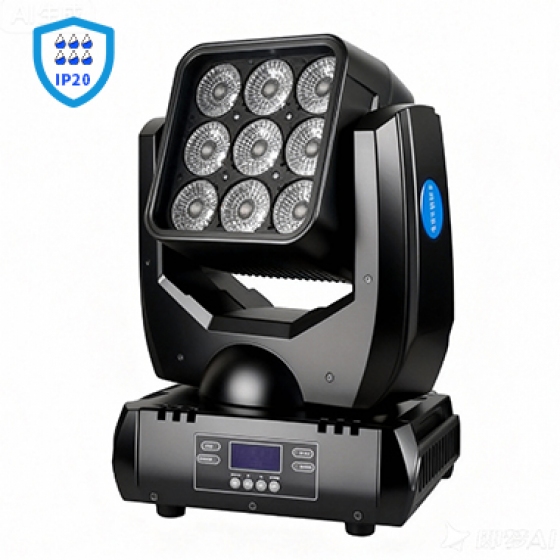

  • 9*15W led matrix moving head light with zoom(this model is EOL)Back

  • Model: LM915Z
  • Voltage: 90_240V
  • Bulb model: Taiwan LED 15W
  • Wffect wheel:
  • Color wheel:
  • Gobo:
  • Power:
  • IP lever: 20
  • Voltage:
  • Size:
  • Function:
  • Carton size:
  • {$title}

(this model is EOL)
VIDEO LINK

Led Matrix video link

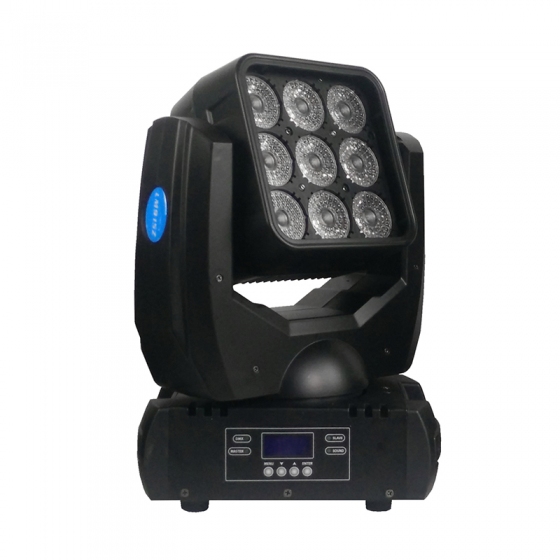

LM915Z led matrix moving head  light with zoom

TAIWAN LED lamp(RGBW) BEAM ANGEL:10-50 degreea

It can make as LED BEAM/WASH BECAUSE OF ZOOM.
Unlimited pan/tilt Rotation, with individual led control.

Featuring with 9pcs high brightness 15w RGBW 4-in-1 LEDs,

The super quality lens with focusing was imported from France Gaggione.

offering smooth color mixing wash and pure colors effect.

Each LED can be individual LED control.

Specification:

Channels mode   16/22/50CH;   :
Taiwan Prol ight lamp 15W RGBW 4 in 1  Lamp:   ;
power: 110-240V,50/60Hz;
Total power: 180W;
Display:  LCD  screen display, can reverse 180°;
Lens:  ; France Gaggione
transparency index : 80-85% , Perfect Color Mix;
Zoom angel :  10-50°;
Dimmer : 0-100% l inear adjustment ;
Pan :   ; un-l imited roation function
Ti lt  :    ; un-l imited roation function
IP Rate:  IP20;

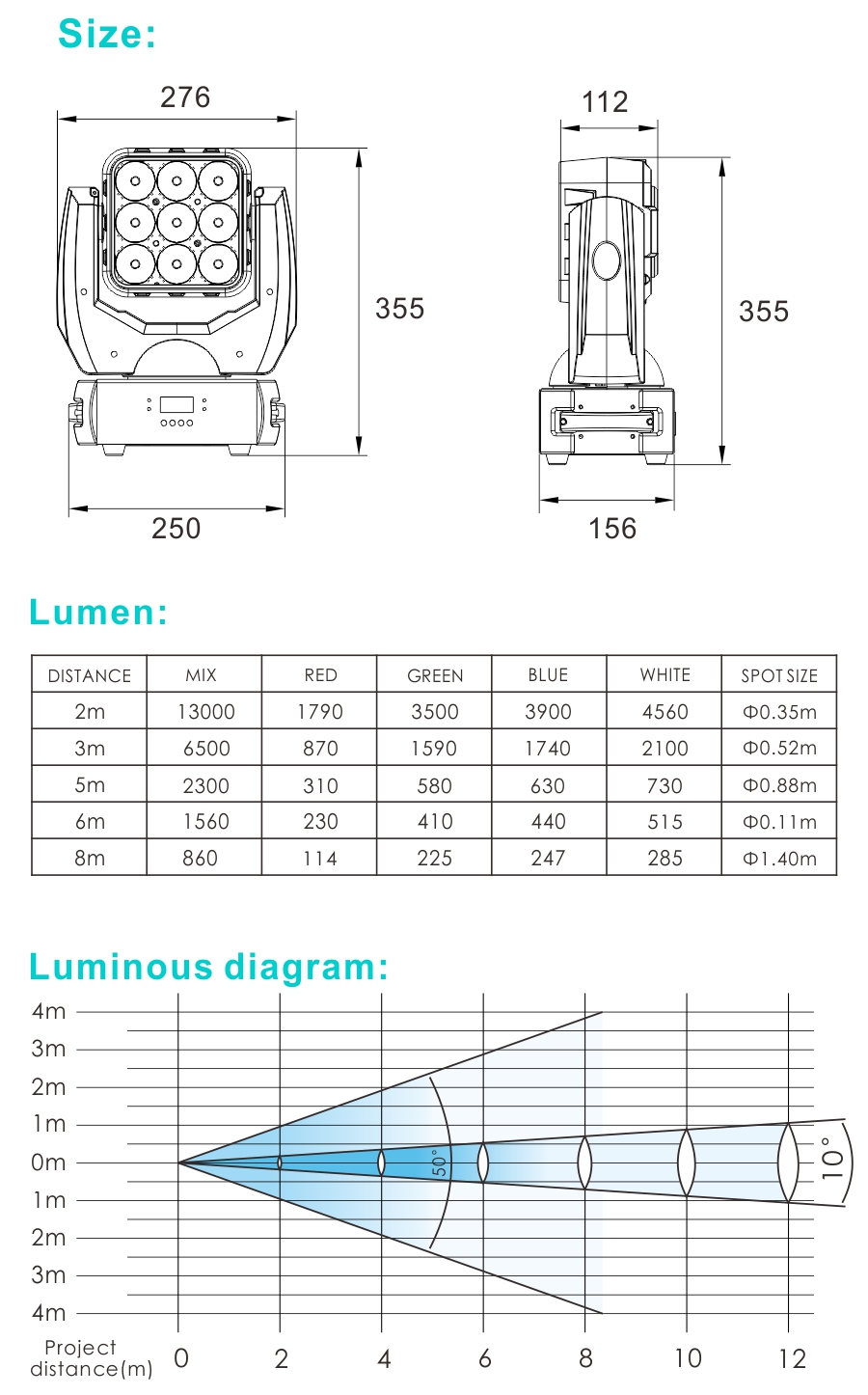

Product size:  250x156x355 mm;
Carton box:  330x240x390 mm;
N.W:  6KG ;
G.W:  7.5KG(carton box

5:Features:

1)with 220V power supply, you can adjust or reset DMX address.

2)The fixture using linear motor focusing, offering beams and color mixing effect.

3)With rich built-in single control settings program, the feature show strong and dynamic effect.

4)9pcs RGBW LEDs, total of 9 * 4 = 36 ways of color control.

Byusing constant current control of each color, its brightness maintain on
thesame level no matter in single fixture control or multiple fixtures control
