  • 19*15W LED Moving Head Wash ZoomBack

  • Model: LM285
  • Voltage: 110-240V,50/60Hz;
  • Bulb model: TAIWAN 15W RGBW 4in1 LED;
  • Wffect wheel:
  • Color wheel:
  • Gobo:
  • Power: 400W
  • IP lever: IP20
  • Voltage:
  • Size: 12KG
  • Function: 15KG(carton box).
  • Carton size: 435x340x565 mm;
  • {$title}

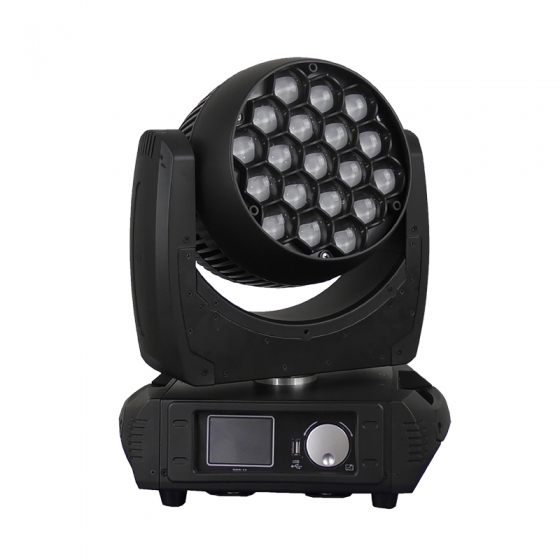

19*15W LED moving head wash zoom
Youtube :
Mode NO LM285
Channel Mode:15/25CH

Light Source
Light Source: 15W RGBW 4in1 LED;
Life time:20000Hours

Optical System

Lens: French lens, 8 degree;
Zoom angel :  7.9-38°;
Dimmer : 0-100% l inear adjustment ;

Control & screen
Display:  LCD  screen display, can reverse 180°;
Protocols: DMX512, RDM
USB connector can set DMX address with power and upgrade the software.

Pan:540°;8 Bit/16 Bit
Tilt:270°;8 Bit/16 Bit
Magnetic sensor position lock, more accurate than classic optical sensor

Electrical info
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 400W
Power connector input
Data in/out: 3-pin and 5-pin XLR

Size & Weight
Product size:   365x256x476 mm;
Carton box:  435x340x565 mm;
N.W: 12 KG;
G.W: 15 KG kg(carton box).

1.Power Cables

2.safety cable


4.User manual
