  • Moving Head Beam 230Back

  • Model: Beam230
  • Voltage: 110-250V
  • Bulb model: YODN 7R 230W
  • Wffect wheel: 8-facet Prism
  • Color wheel: 14 colors
  • Gobo: 17 gobos
  • Power: 230W
  • IP lever: IP20
  • Voltage:
  • Size: 18.5kgs
  • Function: See below info
  • Carton size: 400*465*605mm
  • {$title}



Mode NO : Beam230

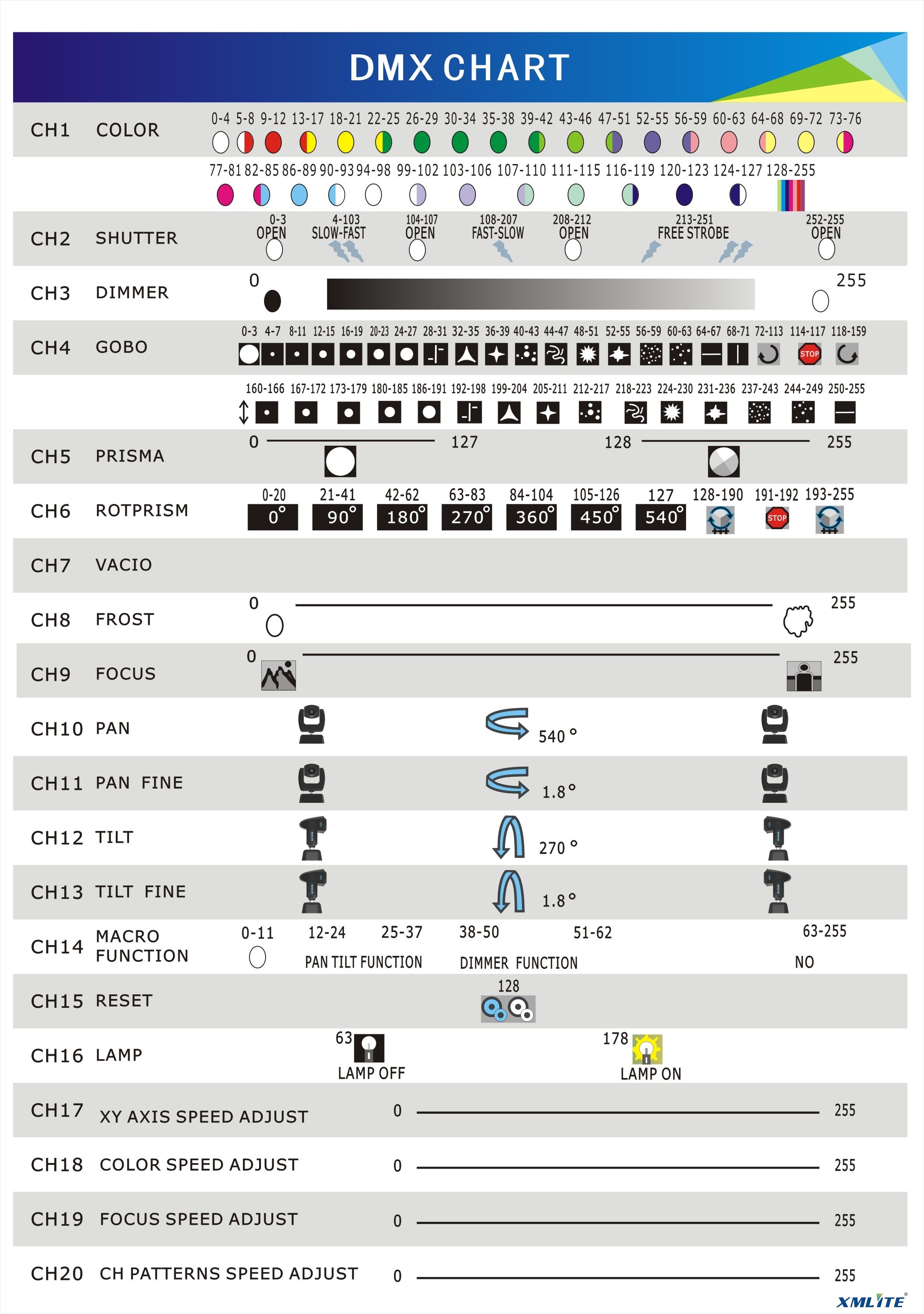

Channel Mode: 16/ 20 CH

Light Source

Lamp : YODN230W R7
Average Lifespan: 2000 hours

Optical System
Beam angle : parallel beam angel  0 – 3.8°
Dimmer : 0-100% linear adjustment
Wash effect : adjustable Wash effects angle

Gobo Wheels

17 fixed gobo + blank gobo

Gobo Wheels
Color : 14 color + blank color wheel,
Color temperature : 8500K

Prism System
Prism : rotation 8-face prism, Bilateral rotation .
Lens : high precision optical lens

Electrical Info
Voltage : 110V~240V/50-60Hz
Ballast : Electronic ballast

Pan/Tilt : X axis 540° Y axis 250°automatically accurate positioning.

Control & Screen
Focus: linear adjustment
Strobe : Double lens strobe (0.5-9 times/ second)
Control mode : Standard DMX512, Automatic and Master/ slave mode.
Controller can open the lamp and reset, including delaying function

Size & Weight

Weight : 18.5KG

We also producing:

LED Beam Moving Head,2R Beam Moving Head(also named moving head beam 2R),230W Beam Moving Head Light,280W Beam Moving Head Light(also be called as moving head beam 10R), and other etc Moving Head Light

Why choose XMLITE

XMlite is fast developing company

In March 2010, XM only have 210 square meters factory on the ShiJing town. As the fast development, XM become to 750 m³, In 2010 July. However, when the time arrived November 2011, XM have another chance of become bigger again. Plant size enlarge to 2200 m³.The worker, as well, grows from 20 to 50. On 2013 year, we have arrive 120 staff, and 6000 square meters.

XMlite a reliable factory
XMlite is the first factory, who take 3 years guarantee as the after sell service. In China, there is over 100 user scenarios, In worldwide, there is over 20 countries have customers. XM light only produce two model of beam light( beam200 , and beamspot ). XM try to maximize the sales. XM only sell the product he own produce.

High Quality of the raw material , make the stable product
XMlite ‘s market position is high cost –effective. Every spare parts picked up from highlevel supplier. The mass purchase quantity make our spare part’s cost islower than our competitor. Low cost enlarge our sale amount , sale’s increase regurgitation-feedingour cost.
XM have professional research group , skillful engineer .Perfect qualityand good after sell service , will be bring profit for customers. XM alsoaccept the OEM service ,which have good reputation during all customers.

XMlite is one of the biggest moving head beam producer factory in Guangzhou.
We have customers from all over the world as following:
Argentina, Australia, Bolivia, France, Greece, India, Indonesia, Israel, Italy, Kuwait, Malaysia, Mexico, Pakistan, Philippines, Poland, Portugal, Saudi Arabia, Singapore, Slovakia, South Korea, Spain, Sri-lanka, Turkey, U.S.A , Russia and Vietnam.

After-sale Service commitment
1 When the products had the technical problems during use, we will give timely answer once get the inform or arrange the technicals give the service to door..
2 We offer 3-year free warranty (In the first year, all the cost for warranty is paid by our factory, including the freight which for the broken products reback to the factory and the spare parts sent to the customers. And the next 2years, we will offer the spare parts for free)
Remarks: The warranty does not cover the light source.

 XMlite also produce:,Moving Head Beam 200,Moving Head Beam 230w,LED Beam Moving Head,2R Beam Moving Head,280W Beam Moving Head Light(hot beam) and 280W spot Moving head light( beamspot)




1.Power Cables
2.safety cable
4.User manual
