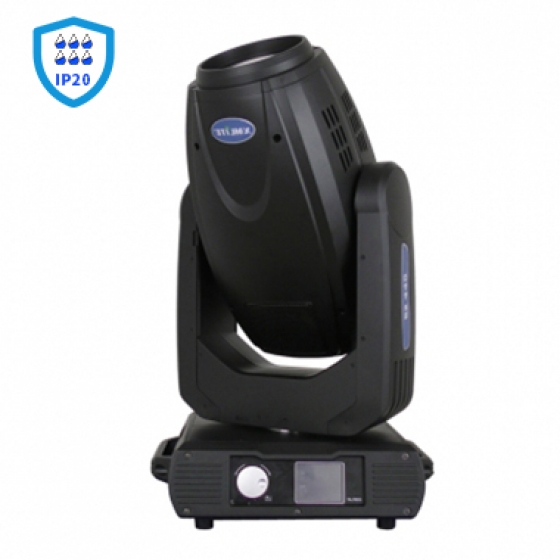

  • 17R Hybrid CMY,Moving Head HybridBack

  • Model: Megabeam350
  • Voltage: 110-220v
  • Bulb model: MSD YODN S17
  • Wffect wheel:
  • Color wheel: 11 colors+white+CMY+CTO
  • Gobo: Rotation gobo: 9 gobo+ white,changeable;
  • Power: 470W
  • IP lever: 20
  • Voltage:
  • Size:  20KG
  • Function:
  • Carton size: 540x450x650 mm
  • {$title}

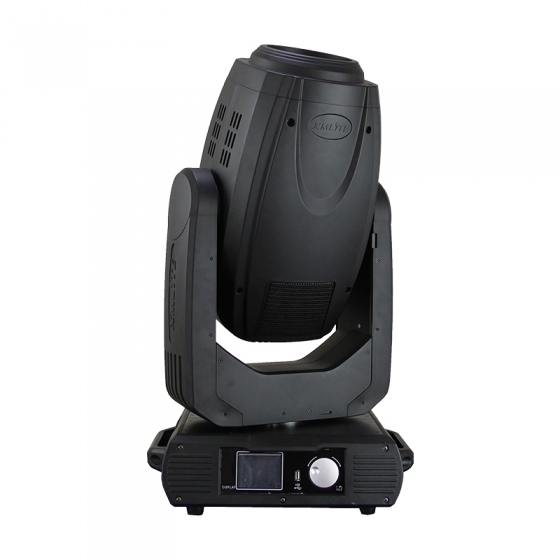

MegaBeam350  hybrid moving head light with CMY and CTO function, This is the smallest power item in Xmlite product range with CMY and CTO function.maximum zoom angle is 37°. Two prism wheels can be superimposed on each other, and the clarity of the prism is better. The color temperature is linearly adjustable, and the atomization effect is better. With CMY stepless color mixing.

________________________________________________________

Video link:  https://youtu.be/BegnSBeFLS4

Click here for all the video of XMLITE


Mode NO : Megabeam350

                   (17r Hybrid CMY Moving Head Light)

Channels mode : 21/25CH;

Light Source

Lamp: YODN MSD350 S17;

Optical System
Beam angel :  4~37°;
Dimmer : 0-100% l inear adjustment ;

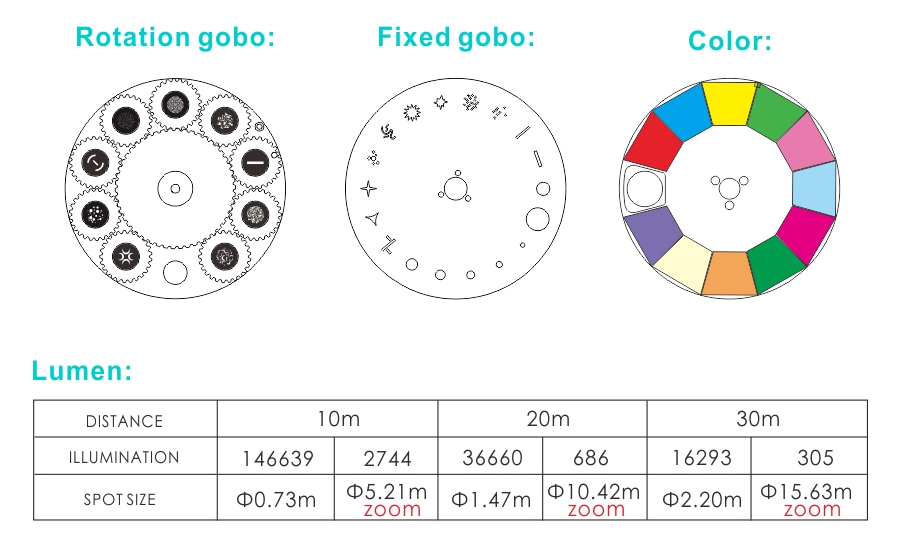

Gobo Wheels
Rotation gobo:   9 gobo+ white,changeable;
Gobo size diameter:14.9mm ,image diameter:13mm;

Color Wheels

11 colors+white+CMY+CTO

Prism System
8 facet prism+ 6 l inear prism ,Frost function;
Fixed gobo :   16 gobo + white.


Control & Screen
Display:  2.8 inch  screen display,can reverse 180°;
USB connector can set dmx address with power and upgrade the software.


Electrical Info
Power: 110-240V,50/60Hz;
Total power: 470W;

PAN & TILT

Pan :  540°;  8Bit/16Bit ;
Ti lt  :  270°;  8Bit/16Bit ;

Size & Weight
Product size:  440x310x680 mm;
Flycaes:  930x520x910 mm;
Carton box:  540x450x650 mm;
N.W:  20KG ;
G.W:  92 KG(with flycase 2 in 1);
G.W:  25 KG(carton).



1.Power Cables
2.safety cable
3.Omega
4.User manual
5.Hooks
6.Flycase(optional)
7.Raincover(optional)
