MODEL : Exp1400

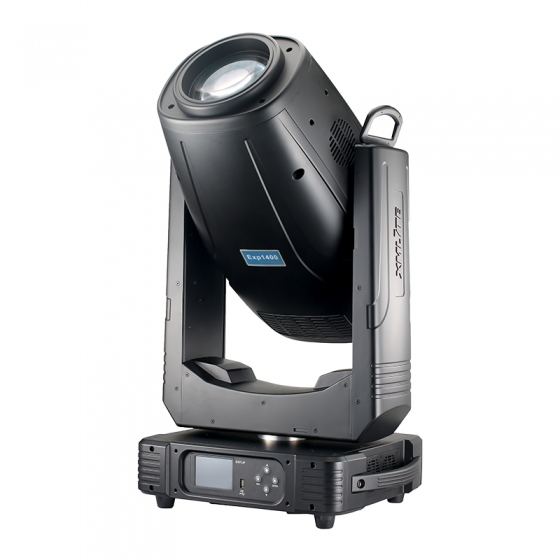

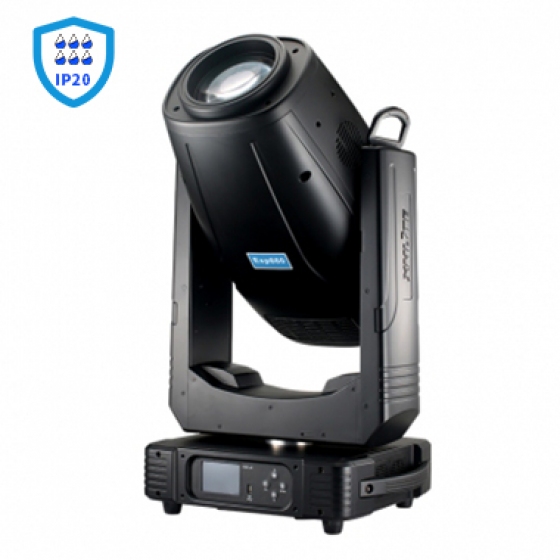

1400W Moving Head Profile

Video link click here

Click here for other video of XMLITE

Modle: Exp1400
Channels mode:  37/41CH;

Light Source
Lamp:  OSRAM lok-it 1400-PS_Brilliant,CRI>90 ;
Life time：750 hours;
Light Source Luminous Flux：120000（min 110000）；
Holder: PGJX28
power:  AC200-240V,50/60Hz;
Total power: 1800W;PF≥0.95；

Optical system
Germany Reflector,Output lens size 130mm.
Beam angel：6-51°,linear zoom；
Dimmer : 0-100%linear adjustment ;

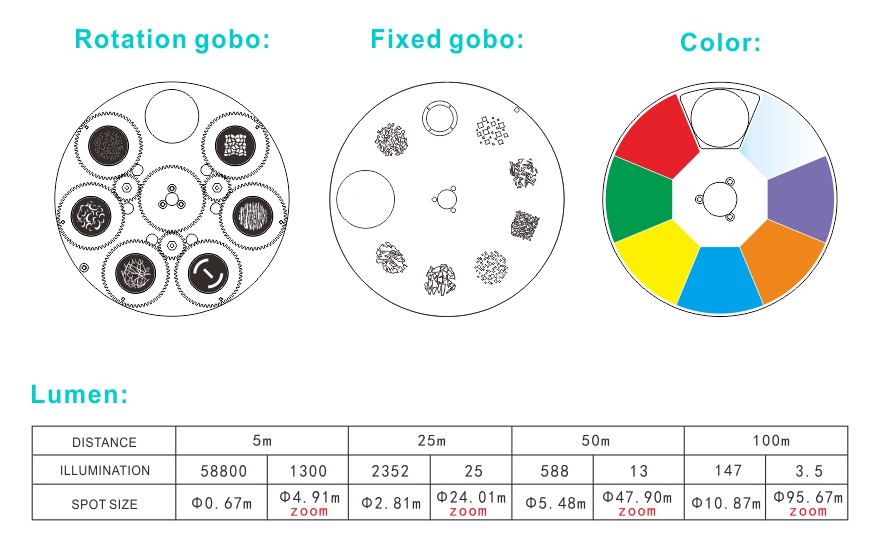

Color Wheels
7 fixcolors+white+CMY+CTO.CT:3200-6000K

Prism System
4 facet prism ,Frost function;
Fixed gobo: 8 gobo+ white;
Rotation gobo: 6gobo+ white,changeable;

Control & Screen
Display: 3.5 inchcolor LCD display, can reverse 180°;
Cut: 4 plates.After cut ,the pattern can rotation 180°
Iris: Disphragmadjustable;
Retrieving magnetoelectric positioning system has
higher accuracy and reliable performance.
USB connector canset DMX address with power and
upgrade the software.
Aperture:mechanical linear aperture, adjustable spot size.
Lamp control:electronic bright and blow out, turn off and s
hut down for 8 seconds, thenstart the ECO power down mode.

PAN & TILT
Pan ：540°;  8Bit/16Bit ;
Tilt:270°;  8Bit/16Bit ;

Size & Weight
Product size:  482x372x870 mm;
Carton box: 575x590x1000 mm;
Flycaes: 680x705x940 mm;
N.W:  41KG ;
G.W:  75 KG(with flycase 1 in 1);
