  • 382W Moving head hybridBack

  • Model: Mega Plus 382
  • Voltage:  110-240V,50/60Hz
  • Bulb model: OSRAM SIRIUS HRI 382W
  • Wffect wheel:
  • Color wheel: 13+1
  • Gobo:
  • Power: 540
  • IP lever: 20
  • Voltage:
  • Size: 23KG
  • Function: beam, spot, wash, zoom
  • Carton size: 540x450x650 mm
  • {$title}

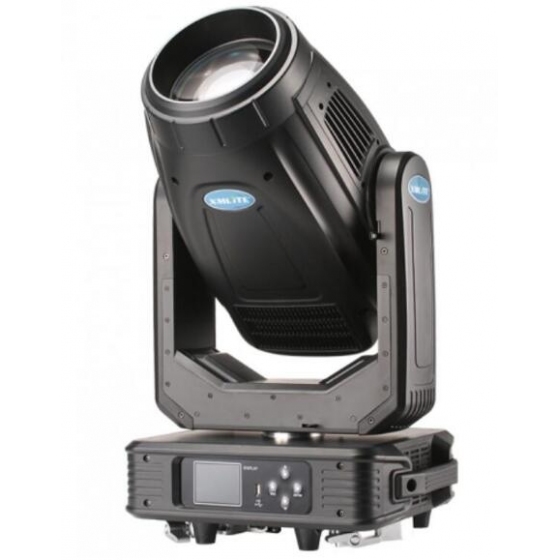

382W Moving head hybrid

Youtube Link: 382 Moving head hybrid VIDEO HERE

ModelMegaplus382
Channel Mode19CH

Light Source
Lamp:
OSRAM SIRIUS HRI 382W

Voltage: 110-240V,50/60Hz

Power: 540W

Light Source life: 2500 hours

Color temperature: 7000K



Optical System
Advanced optical system, uniform pattern, sharp beam and clear edge.

Beam angel : 2.535°


GOBO Wheels
Fixed GOBO :  13  GOBO  + white

Rotation GOBO 7 GOBO3Color patternwhite

Rotating GOBO diameter is 22mm, effective diameter is 17mm,, GOBO is thickness 1.1mm.


Color Wheels
13 color +white



Prism System
Rotation GOBO 1: 8 facet prism
Rotation GOBO 2: 6 facet prism(Rotation GOBO 1 and Rotation GOBO 2 can layer,can zoom)



Control & Screen
Display: LCD  touch screen display,  screen display, can reverse 180°
Control way: Support DMX512, RDMautomatic run.
USB: It supports setting address code in case of no power supply and can be used as external interface for software upgrade.


PAN & TILT
Pan :  540°;  8Bit/16Bit ;

Tilt  :  270°;  8Bit/16Bit ;


XY axis with automatic error correction system.
The traditional hall positioning system is replaced by magnetoelectric positioning system.
It is not affected by lampblack, dust and natural light, with higher precision and reliable performance.

DMX Signal input port: 3 pin

With integrated hook



Size & Weight
Product size: 405x245x685 mm
Flycase: 930x520x910 mm
Carton: 540x450x650 mm
N.W: 23 KG
G.W: 26 KG( With carton )
