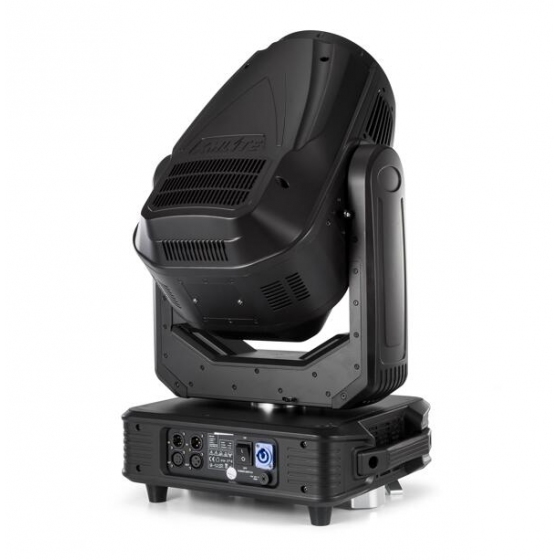

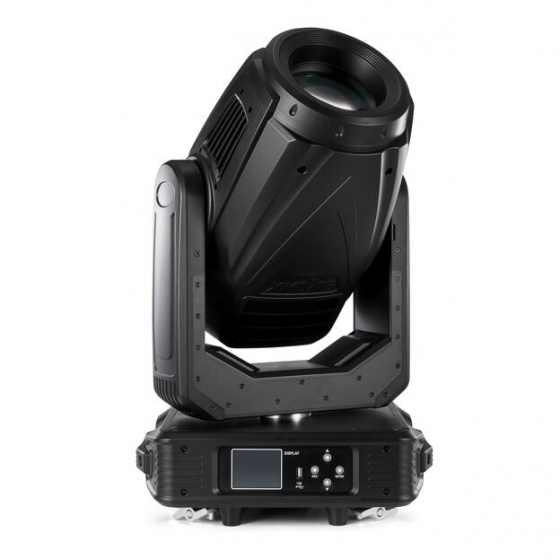

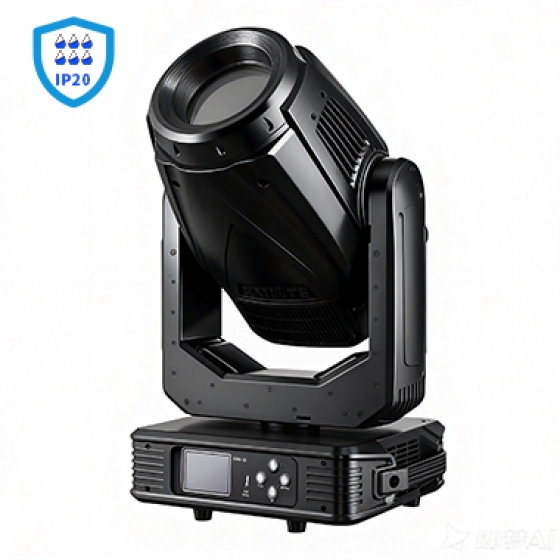

  • 380w Hybrid with CMY moving head lightBack

  • Model: MEGABEAM380
  • Voltage: 110-240
  • Bulb model: osram
  • Effect wheel:
  • Color wheel:
  • Gobo:
  • Power:
  • IP lever:
  • Voltage:
  • Size:
  • Function:
  • Carton size:
  • {$title}


Mode NO : Megabeam380

                   (19r Hybrid CMY Moving Head Light)

Channels mode : 21/25CH;

Light Source

Lamp: OSRAM382;

Optical System
Beam angel :  4~37°;
Dimmer : 0-100% l inear adjustment ;


Gobo Wheels
Rotation gobo:   9 gobo+ white,changeable;
Gobo size diameter:14.9mm ,image diameter:13mm;


Color Wheels

11 colors+white+CMY+CTO

Prism System
8 facet prism+ 6 l inear prism ,Frost function;
Fixed gobo :   16 gobo + white.


Control & Screen
Display:  2.8 inch  screen display,can reverse 180°;
USB connector can set dmx address with power and upgrade the software.


Electrical Info
Power: 110-240V,50/60Hz;
Total power: 470W;


PAN & TILT

Pan :  540°;  8Bit/16Bit ;
Ti lt  :  270°;  8Bit/16Bit ;


Size & Weight
Product size:   410x250x690 mm;
Flycase:  930x520x910 mm;
Carton box:  800x420x500mm;
N.W: 25KG ;
G.W:  28 KG(carton box).
