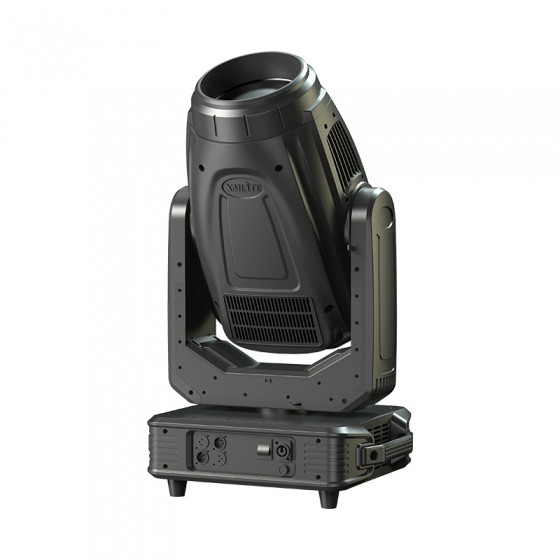

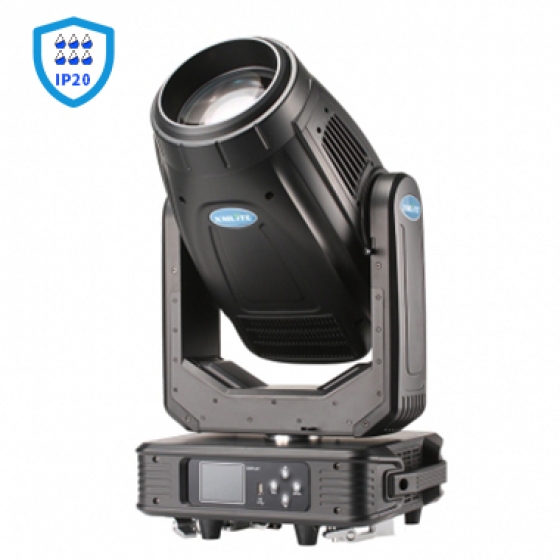

  • 580W moving head beam+ framing,580w sharpy framingBack

  • Model: EXP 700
  • Voltage: 110-240
  • Bulb model: OSRAM HRI 580W
  • Effect wheel: Fixed gobo:16 gobo + white
  • Color wheel: 6 fix colors + white
  • Gobo: Rotation gobo: 7 gobo +white (changeable)
  • Power: 680W
  • IP lever: 20
  • Voltage:
  • Size:
  • Function:
  • Carton size:
  • {$title}

Modle:Exp700

Channels Mode:43CH

Light Source

Lamp:OSRAM HRI 580W

Life time:1500 hours

Color temperature:7700 K

Color rendering index:Ra 80

Light Source Luminous Flux18200 lm

光学系统

Beam angel 3.8~46° linear adjustment

Spot uniformity83%

Frost function;Independent frost function;

Dimmer:0—100% linear adjustment

Iris: Disphragm adjustable

Strobe:Support mechanical strobe and adjustable speed strobe effect, support strobe macro function.



Framing System

Cut: 4 plates.Aftercut,the pattern canrotation 180°

Can achieve a one-shot closing of light

Advanced optical system, clear cutting pattern, clear edge and high output efficiency.



Gobo Wheels

Fixed gobo:16 gobo + white

Rotation gobo: 7 gobo +white (changeable)



Color Wheels

6 fix colors + white

CTO linearly adjustable color temperature

CMY color mixing system



Prism System

Rotating prism wheel: 8 prisms + linear 6 prisms, stackable



Control & Screen

DisplayLCD color LCD touch screen,can be reversed 180°

Control way: support DMX512, RDM,automatic

USB:It supports pulling the address code when the power is not turned on, and it can be used as an external interface for software upgrade.

PAN & TILT

Pan : 540°;  8Bit/16Bit ;

Tilt :  270°;  8Bit/16Bit ;

Pan / Tilt  with automatic error correction system

Positioning technology: The magnetoelectric positioning system is adopted, and the traditional Hall positioning system is replaced by a magnetic device.

It is not affected by the interference of oil fume, dust and natural light, with higher precision and more reliable performance.



Electrical Info

Voltage:AC110-240V,50/60Hz

Total power :680W

Signal input port:3 pin

IP:IP20

Noise value:49 dB

Size & Weight

Product Size:405x300x690 mm

N.W:29 kg
