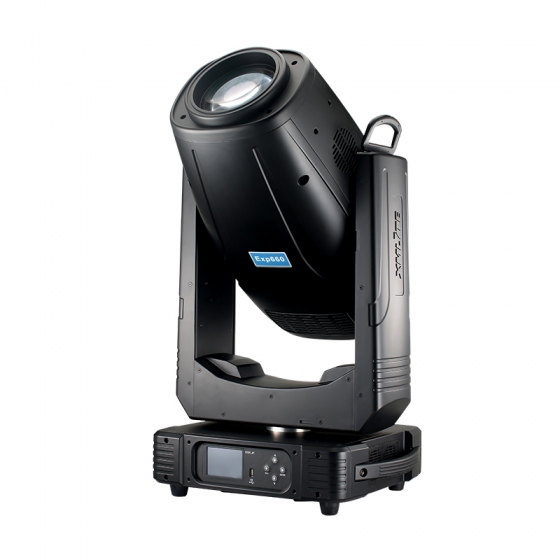

  • 660W LED moving head profileBack

  • Model: Exp660
  • Voltage: AC110-240V,50/60Hz;
  • Bulb model: 660W/1000W LED
  • Wffect wheel: 0
  • Color wheel:  7 fixcolors+white+CMY+CTO.CT:3200-6000K
  • Gobo: Fixed gobo: 8 gobo + white. Rotationgobo: 6 gobo+ white, changeable
  • Power:
  • IP lever: 20
  • Voltage:
  • Size: 40.5
  • Function: 75
  • Carton size:
  • {$title}

LED profile moving head light; moving head light;Framing light
*Below is LED lamp source,CRI is optional ,
 before place order,pls mark it .


Click here for profile

Click here for the all xmlite video

Modle:Exp660

Channels Mode:37/41CH;

Light Source
Lamp:LED 660W/1000W;
Life time:20000 hours; Luminous Flux:52000;
power:AC110-240V,50/60Hz;
Total power:1000W;PF≥0.95;

Opatical System
Output lens size 150mm;
Beam angel:6-39°,linearzoom;
Dimmer :0-100% linear adjustment
If customerneed add extra CRI option lens, there will be one color lens been substitute.

Color Wheels
7 fix color +white+CMY+CTO. CT:3200-6000K

Gobo Wheels
Fixed GOBO:   8 GOBO + white;
RotationGOBO:6 GOBO+ white, changeable;

Prism System
 4 facet prism,,positiveand negative rotation; linear frost function;

Control & Screen
Display:3.5inch color LCD display, can reverse 180°;
Aperture:mechanical linear aperture, adjustable spot size.
Cut: 4plates. After cut ,the pattern can rotation 180°.
Iris:Disphragm adjustable.
Retrievingmagneto electric positioning system has higher accuracy and reliableperformance.
USBconnector can set DMX address with power and upgrade the software.
Lamp control: electronic bright and blow out, turn off and shut down for 8 seconds,then start the ECO power down mode.

PAN & TILT
Pan:540°,8/16Bit;
Tilt :270°,8/16Bit;

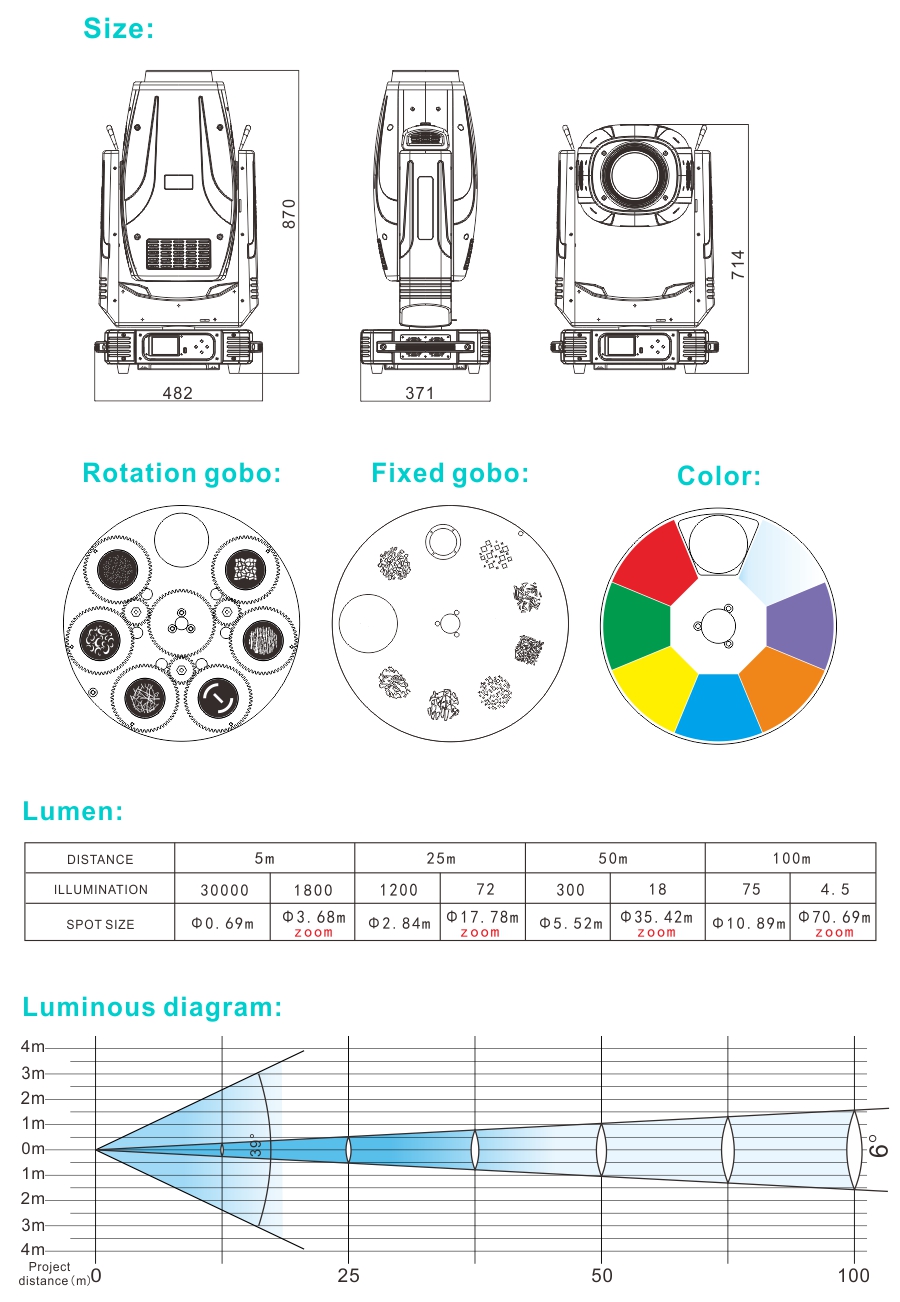

Size & Weight
Product size:  482x371.7x870 mm;
Carton box: 575x590x1000 mm;
Flycaes: 680x705x940 mm;
N.W:  42KG ;
G.W:  75 KG(with flycase 1 in 1);



1.Power Cables
2.safety cable
3.Omega
4.User manual
5.Hooks( integration)
6.Flycase(optional)
7.Raincover(optional)
