  • 19*40W LED Moving Head Wash ZoomBack

  • Model: LM760
  • Voltage: 110-240V,50/60Hz;
  • Bulb model: 40W RGBW 4 in LED,19pcs;
  • Wffect wheel:
  • Color wheel:
  • Gobo:
  • Power: 850W
  • IP lever: IP 20;
  • Voltage:
  • Size: 17.5KG;
  • Function: wash
  • Carton size: 535x440x585mm;
  • {$title}

19*40W LED moving head wash zoom

Youtube Link:

Mode NO LM760
Channel Mode:20/77CH

Light Source
Light Source: 40W RGBW 4 in LED,19cs
Life time:20000Hours

Optical System

Advanced optical system, clear, sharp
Zoom range 4°-50°

Control & screen
Display: LCD screen
Protocols: DMX512, RDM
USB connector can set DMX address with power and upgrade the software.

PAN & TILT
Pan:540°;8 Bit/16 Bit
Tilt:270°;8 Bit/16 Bit
Magnetic sensor position lock, more accurate than classic optical sensor

Electrical info
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 850W
Power connector input
Data in/out: 3-pin and 5-pin XLR

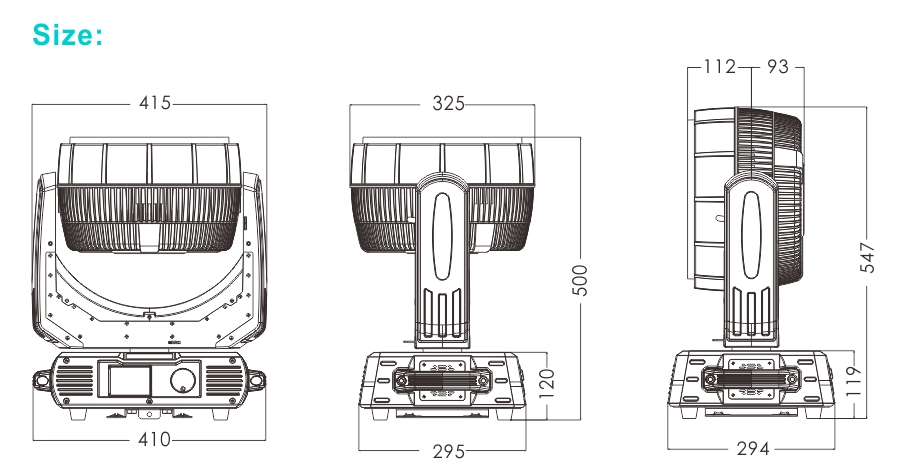

Size & Weight
Product size:   413x320x487mm;
Carton box:  535x440x585;
N.W: 17.5 KG;
G.W:  21 KG kg(carton box).



1.Power Cables

2.safety cable

3.Omega

4.User manual

5.Hooks( integration)

6.Flycase(optional)

7.Raincover(optional)
