  • 380W Beam Moving head lightBack

  • Model:
  • Voltage:
  • Bulb model:
  • Effect wheel:
  • Color wheel:
  • Gobo:
  • Power:
  • IP lever:
  • Voltage:
  • Size:
  • Function:
  • Carton size:
  • {$title}

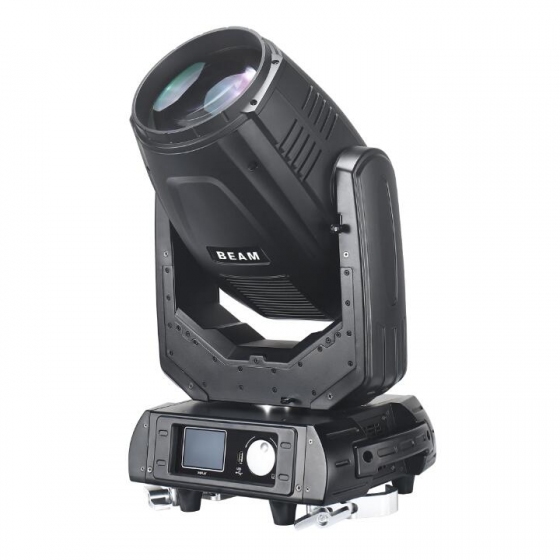

The LLP380 beam moving head light,was launched in 2021. It is a beam light optimized on the basis of XMlite LLP400. The size is 30% smaller than the LLP400 and the weight is lighter. The light source is USHIO NSL391 , and the light source is guaranteed for 800 hours or 18 months  ; Two single prism disks can be superimposed to produce three different prism effects; the optical system is designed with emphasis on the sharpness of the beam; the products are mainly used in government and enterprise projects, banquet halls, school auditoriums, touring performance rentals and other places.


Mode NO LLP380



Channels Mode:16/20CH



Light Source

Light Source :Japenese USHIO NSL391

Lamp Color Temperatrue :7400K

Total luminous flux:25600 lumens

Lamp lifespan:1500 hours

Voltage:110-240V,50/60Hz;

Power:550W



Optical System

Beam angle:2.0°;



Gobo Wheels

14 colors + white



Color Wheels

Fixed GOBO: 14+ white

Color chip: special high temperature resistant raw material, bright andbright color;





Prism System

Prism 1:1 pcs 16prism,16facet prism+18facet prism(6+12doublelayer);



Control & Screen

Display: 2.8 inch touch screen, can be reversed 180°,


Using magnetic code reset,accurate positioning of XY axis;

Dimming: 0-100% mechanical dimming

Support mechanical stroboscopic and adjustable speed stroboscopiceffects, support stroboscopic macro function, retrieval and reset;



Positioning technology: Magnetoelectric positioning system is adopted,and the traditional Hall positioning system is replaced by magnetic devices,which has higher accuracy and reliable performance; it is not affected by theintervention of oil smoke, dust, and natural light.



USB: Supports dialing the address codewhen the power is not turned on, and can be used as an external interface forsoftware upgrade; supports RDM protocol, and can dial the address code remotelyand intelligently through the console.





PAN & TILT

Pan:540°,8Bit/16Bit;

Tilt:270°,8Bit/16Bit;

IP protection level: IP20;



Size & Weight

Product size:382x260x563 mm;

Flycaes: 960x510x74 0 mm;

Carton box: 460x440x580 mm;

N.W.:17 KG;

G.W.: 21 KG( Withcarton).
