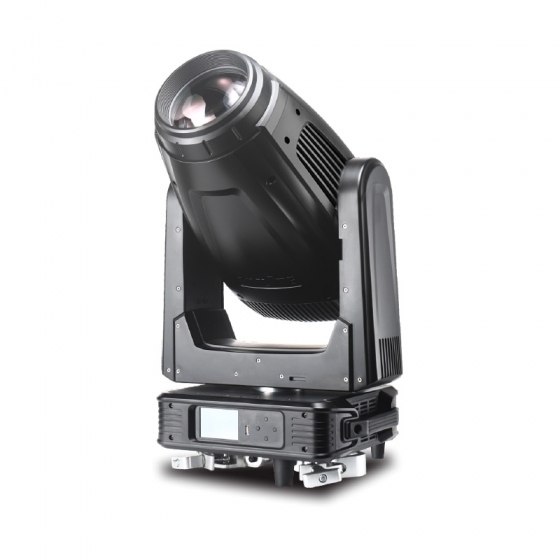

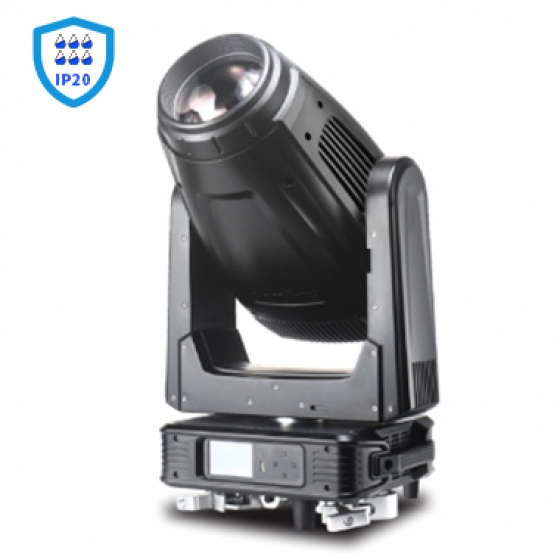

About MF9  double led source profile , it is a totallynew products we launched on 2022 Oct. It based on double led source , each is800 W white led engine. While one is for high brightness version(Ra70, 31800lm),another is high Cri led source(Ra96  ,outputbrightness is 19200lm).This mode could used in more place than other profilebecause it can support two different led source function.

Click here for video link: HERE IS VIDEO ,PLS CLICK HERE


Channels Mode 37/41CH;

Light Source
Lamp: 800W*2 White LED Engine ;
Life time20000hours;
Light Source Luminous Flux

high brightness version: Ra70, 31800lm,
high Cri led source: Ra96, 19200lm


Beam angel: 552°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable

Gobo Wheels
Fixed gobo:   9 gobo + white.
Rotation gobo:  7 gobo+ white,changeable;

Color Wheels
7 fix colors+white+CMY+CTO.CT:3200-6000K

Prism System
Prism:  4 facet prism ,2 level frostfunction;

Framing System
Cut: 4 plates. After cut, the pattern can rotation180°
Position lock system: Magnetism position lock system

Control & Screen
Display: 2.8 inch  screen display, canreverse 180°;

Connector can setDMX address with power and upgrade the software.

Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 1000W;

Pan : 540°; 8Bit/16Bit ;
Tilt :  270°;  8Bit/16Bit ;

Size & Weight
Product size:  438x302x787mm;
Carton box: 540X400X880mm;
N.W: 36KG ;
G.W: 39 KG
