800W LED profile moving head lightBack

Youtube link:EXP750

Channel Mode:  EXP 750

Channels mode：37/41/50CH;Light

Light Sourc: 800W LED White LED Engine;

Lightsource colortemperature:8000K;

Life time: 20000 hours;

Light Source Luminous Flux: 33000 lm;

Control & screen

Display:2.8inch screen display,can reverse 180°;

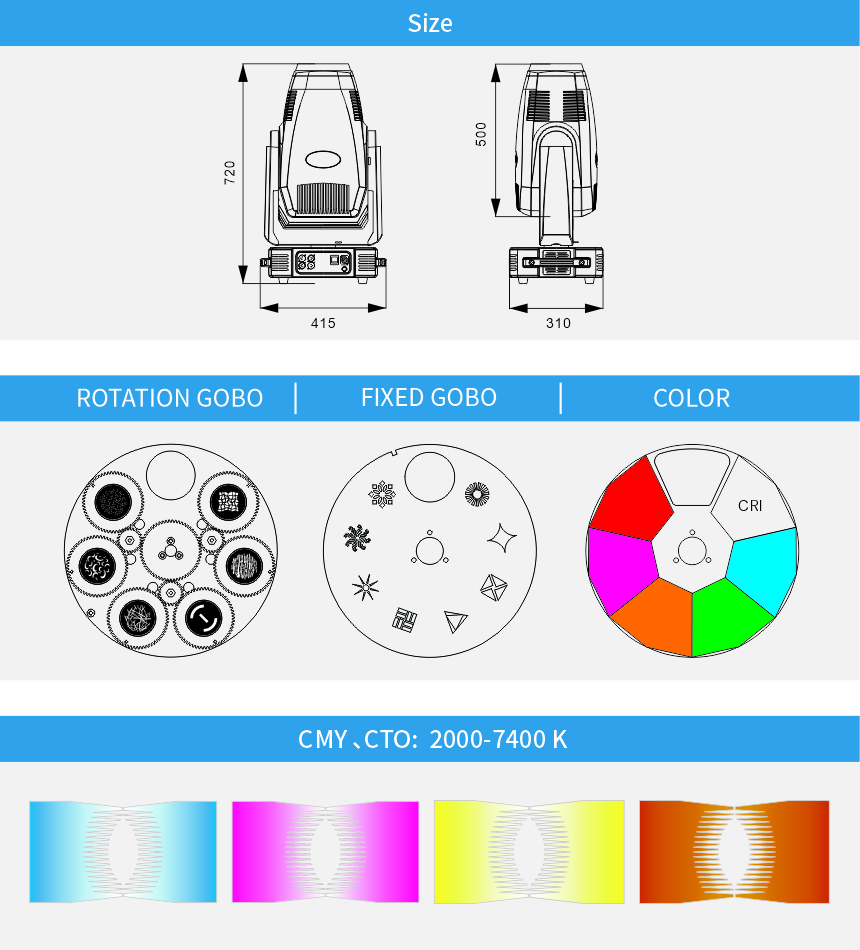

Fixed gobo wheel: 5 fix colors+white+CRI+CMY.CTO:2000-7400K;

Fixed gobo:8 gobos+white;

Rotation gobo:6 gobos+ white;

Prism:4prism,rotatable;

Frost:linearatomization function;

Beam angel:7°-49°:

Rotation gobo size diameter:27mm;

lris:Mechanicallinearaperture,adiustable spot size:

Cutting: four-piece full-process graphic cutting module, the cutting pattern can be rotated by 180°.

Dimming:0-100%mechanicaldimming;

Positioning technology: High-precision magnetoelectric positioning system is adopted, precise XY axis positioning.UsB: Support to pullout the address code when the power is off, and can be used as an externalinterface for software upgrades,

Support the RDM protocolinterface,and remotelyintelligently dialthe address code through the console;

PAN & TILT

Pan:540°;8 Bit/16Bit;

Tilt:270°;8 Bit/16Bit;

Electrical info

Rated voltage:AC110-240V~;

Frequency:50/60Hz;

Current:9.09-4.55A;

Power: 1000W;

Powerfactor:PF>0.95:

Protection level: :lP20;

Size & Weight

Product size:425x300x7700 mm;
