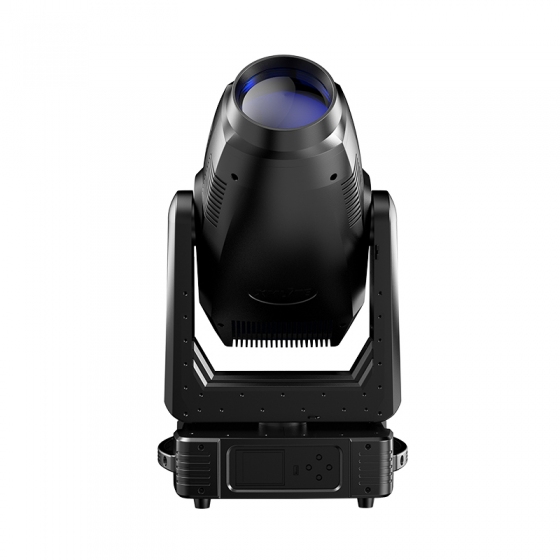

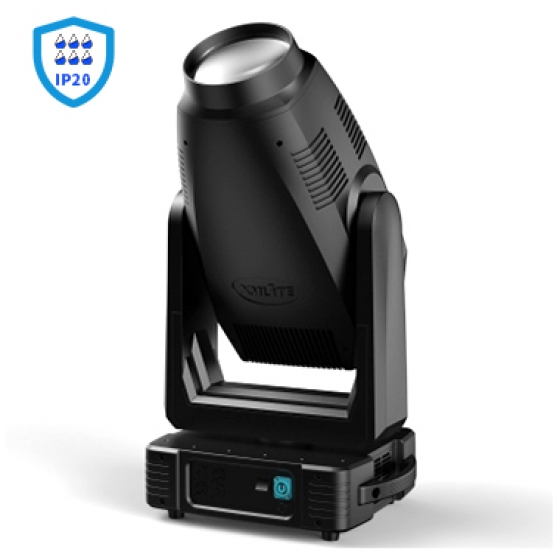

800W Profile moving Head LightBack

Mode:C8

Channels Mode:   37CH/41CH/50CH；

Light source: 800W LED White light module；

Light source color temperature: 7500K;

Light source life: 20000 hour;

Luminous flux output：32000 lm；

Rated voltage: AC110-240V~；

Frequency：50/60Hz;

Current：8.18A-4.09A；

Power: 900W;

Power factor：PF≥0.95；

Display: 2.8-inch touch screen, can be reversed 180 degrees°;

Color wheel: 5 fixed color filters + 1 CRI + 1 white light + CMY infinite color mixing, CTO color temperature;

Color GOBO: imported Italian ODL color filter；

Rotating pattern piece size: pattern piece outer diameter 27mm±1mm, effective diameter 21.5mm±0.5mm, pattern piece thickness 1.1mm±0.5mm;

Atomization: with linear atomization adjustable function;

Cutting system: Four-piece full-process graphic cutting module, the cutting pattern can be rotated 180°；

Zoom angle: 4°- 47°;

Hook: The lamp uses an integrated folding hook;

Dimming: 0-100% electronic dimming;

Positioning technology: Adopting high-precision magneto-electric positioning system, XY axis positioning is more accurate;

USB: Supports changing address code without power, and can be used as an external interface for software upgrade;

Protocol interface: Supports RDM protocol interface, and can remotely and intelligently change address code through the console;

Cooling method: Copper tube radiator + intelligent silent fan cooling system;

Pan:540°,8Bit/16Bit;

Tilt:270°,8Bit/16Bit;

IP protection level: IP20;

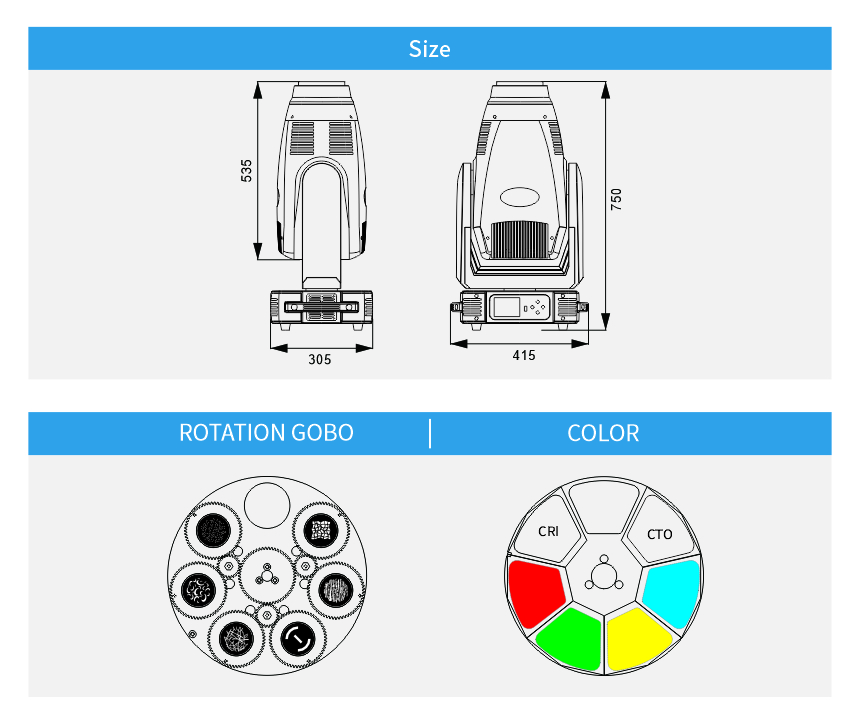

Product size: 41.5x30.5x75 cm;

Net: 29.5 kg;

Functions can be customized according to customer needs.
