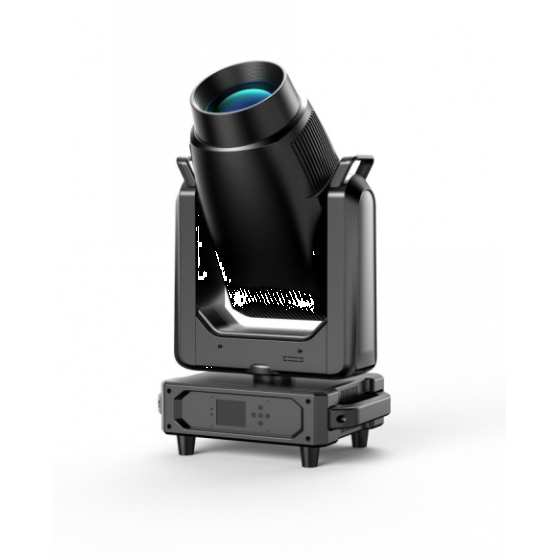

600w Profile Moving Head LightBack

Mode NO :600w Profile Moving Head Light

Channels Mode: : 34CH

Light Surce
Light Source: 600W LED White Light Module
Color Temperature: 7600K
Color Rendering Index (CRI): Ra>70
Light Source Lifetime: 20,000 hours
Luminaire Luminous Flux: 19,000 lm
Illuminance @10m: Min. Angle 20,400 lux, Max. Angle 570 lux
Beam Aperture: 138mm

Optical System

Beam Angle: 7° ~ 40°

Gobo Wheels
Color Wheel: 5 Colors + White, CMY Continuous Color Mixing, CTO Color Temperature: 2500-6500K

Color Wheels
Fixed Gobo Wheel: 6 Gobos + Open
Rotating Gobo Wheel: 7 Gobos + Open

Prism System
Prism Wheel: Rotating 3-facet Prism
Frost: 0~100% Linear Frost
Iris: 6%~100% Smooth Adjustment

Framing System
Shutter: 4-blade Full Graphic Cutting Module, 135° Rotation

Control & Screen

Display: 2.8-inch Touch LCD Screen, Chinese/English Display, 180° Rotation
Dimming: 0-100% Linear Dimming
Strobe: Frequency up to 25Hz, with Random Strobe and Pulse Strobe options
Control Modes: DMX512, RDM, Auto, Master/Slave
Operating Environment: 0-45°C
Signal Connector: 3-pin XLR Socket

Electrical Info

Input Voltage: AC100-240V
Frequency: 50/60Hz
Current: 6.18A (110V), 3.09A (220V)
Rated Power: 680W
Power Factor: PF ≥ 0.95

PAN & TILT
Pan: 540° (16-bit precision)
Tilt: 260° (16-bit precision)

IP Rate:: IP20

Size & Weight

Product Size: 405285706mm
N.W: 28KG

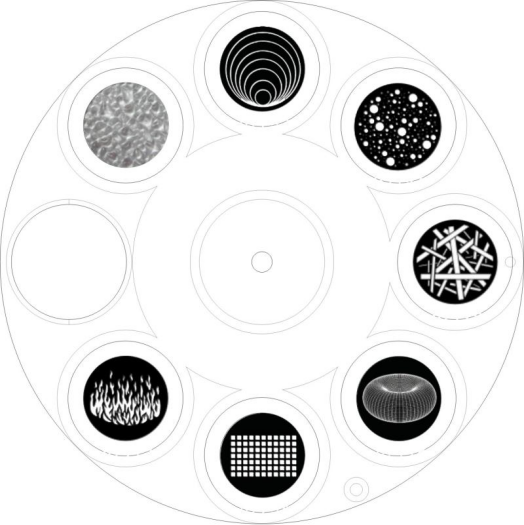

Fixed GOBO

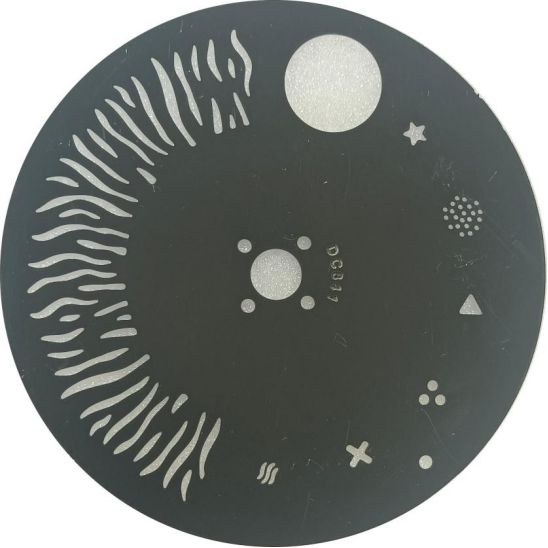

Rotating GOBO

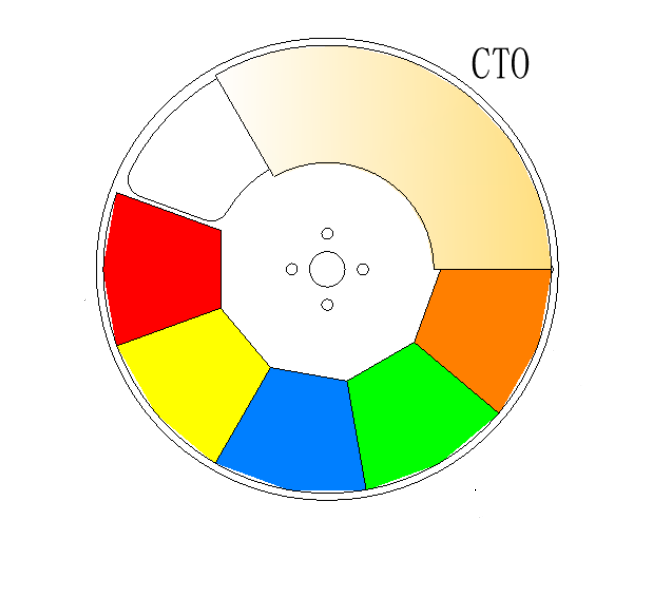

Color wheel

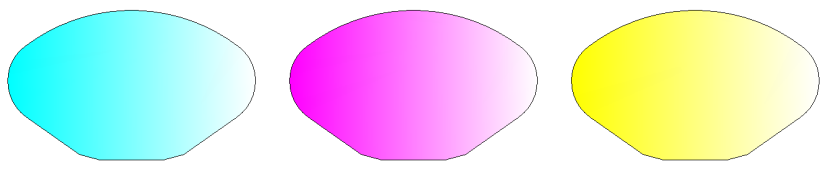

CMY

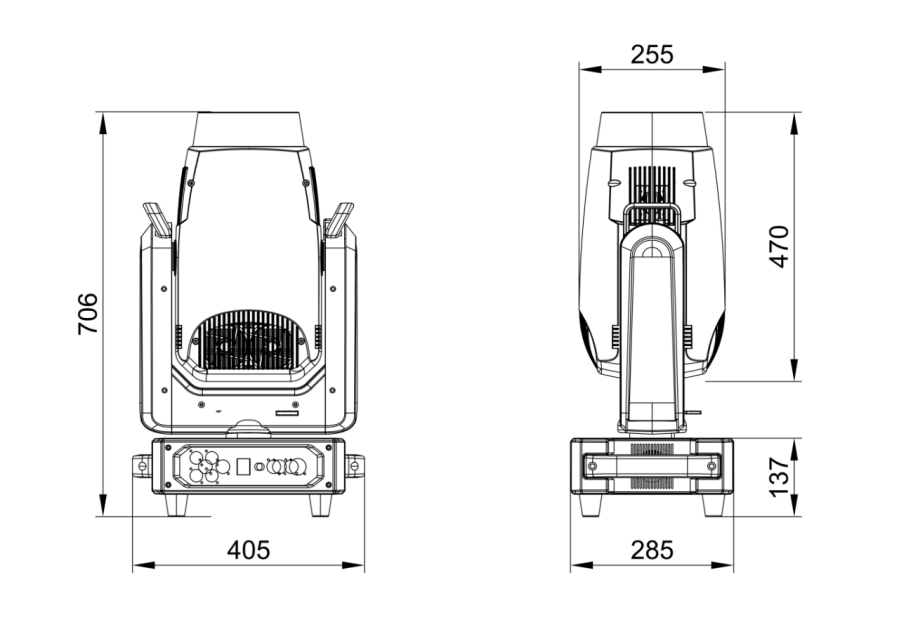

Product size
