  • 37*15W LED Moving Head Wash ZoomBack

  • Model: LM560C
  • Voltage: 110-240V,50/60Hz;
  • Bulb model: 15W RGBW 4in1 LED,37pcs
  • Effect wheel:
  • Color wheel:
  • Gobo:
  • Power: 600W
  • IP lever: IP20
  • Voltage:
  • Size: 17KG
  • Function: 20KG(carton box).
  • Carton size: 535x440x585 mm
  • {$title}

XMLITE 37*15W LED Moving head light wash ,LM560C  with Zoom + wash+ with Circle layout Control (Video included)
LM560C-37*15W moving  head lihgt LED  with zoom is based onXMLITE LM560 moving head light wash, which adjusts the layout of the LED bead base plate to realizeinner and outer circle control function; adds handheld power cord and foldinglamp hook which are convenient for mobile performance; adds color correctioninterface, which can realize high standard requirements for color consistencyof customers. This dyeing lamp uses high-density heat dissipation aluminum,excellent heat dissipation performance, low noise.Optical system is made by French Gaggione lens.

The performance will reach your request.

37*15W LED Moving Head Wash Zoom

Youtube Link:CLICK HERE

Mode NO LM560C

Channel Mode:14/25/30CH

Light Source
Light Source: 15W RGBW 4 in LED,37cs
Life time:20000Hours

Zoom range 7.9-38°

Control & screen
Protocols: DMX512, RDM
USB connector can set DMX address with power and upgrade the software.

Pan:540°;8 Bit/16 Bit
Tilt:270°;8 Bit/16 Bit
Magnetic sensor position lock, more accurate than classic optical sensor

Electrical info
Input voltage range: AC 110-240V, 50/60Hz
Power consumption: 800W
Power connector input
Data in/out: 3-pin and 5-pin XLR

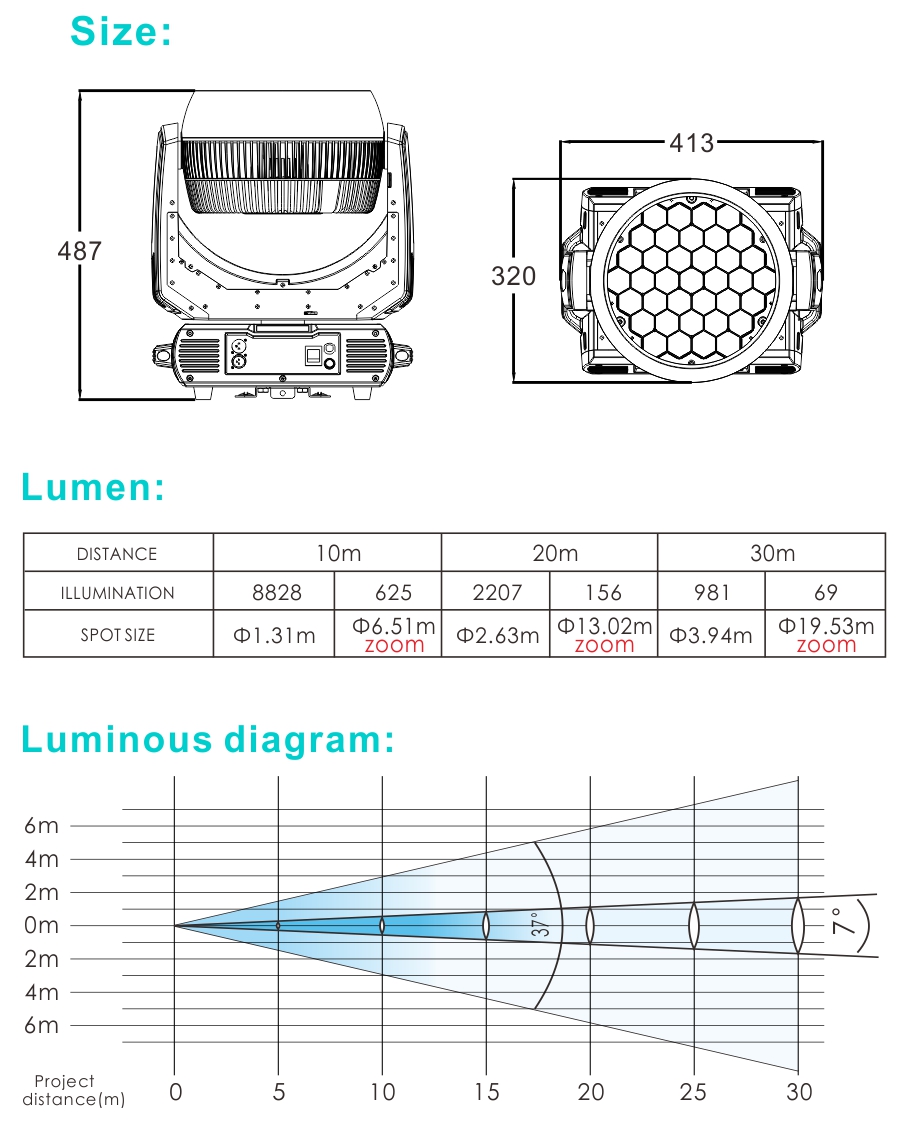

Size & Weight
Product size:   413x320x486mm;
Carton box:  535x440x585;
N.W: 17KG;
G.W:  20KG kg(carton box).
G.W:  67KG kg(With Flycase).


1.Power Cables

2.safety cable


4.User manual

5.Hooks( integration)
