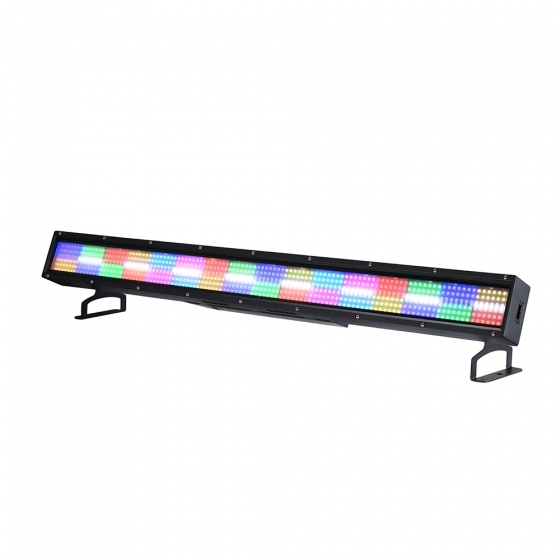

Waterproof LED Wash Bar Light – IP66 high protection rating, featuring a 102°-152° wide beam angle, ideal for cross-border outdoor events. It supports fast multi-unit splicing and universal voltage worldwide.
Equipped with multi-zone individually control and electronic frost function, ARTNET is optional.
Applicable for: Concert lights, theater lights, church lights, sports event lighting, outdoor event lighting, wedding venue lighting, banquet hall lighting.

Click here for video

Click here for the all xmlite video

Model：L5

Channel Mode：

7CH 70CH 117C 68CH 65CH 33CH 17CH 112CH 39CH 21CH 15CH

Light Source ：672x0.5W RGB LED

Voltage: Input power 90-240V，50/60Hz

Total power:850W

Individual color power rating ： 115W，

112x3W CW LED，Rated power：290W

Beam angle:

102°(RGB)

108°(Cw)

Spot angle:

149°(RGB)

152°(CW)

Dimming/Strobe: 0%-100% smooth dimming, powerful and high-output strobe effect, control.

Control protocol:DMX512,RDM

Software upgrade: Upgrade software structure through DMX connection:

Signal input/output

3-pin waterproof XLR socket (Optional 5-pin)

R.J45 interface

Power socket, waterproof power connector, input/output

Main features:

The 16 zones of colored light can be controlled individually,

8 zones of white light can be controlled individually

Protection level: IP66

Size & Weight

Product size:500x158x150mm

Weight: 8.4kg

Catron box : 1105x470x510
