420W Mega Lite Moving Head,Moving Head LightsBack
Model: MEGAPLUS 420
Voltage: 110-240V,50/60Hz;
Bulb model: Ushio450
Effect wheel:
Color wheel: 11 COLORS+WHITE
Gobo: 14 gobo + white.
Power: 600W;
IP lever: IP20;
Voltage:
Size: 24.5 KG ;
Function:
Carton size: 28 KG
{$title}

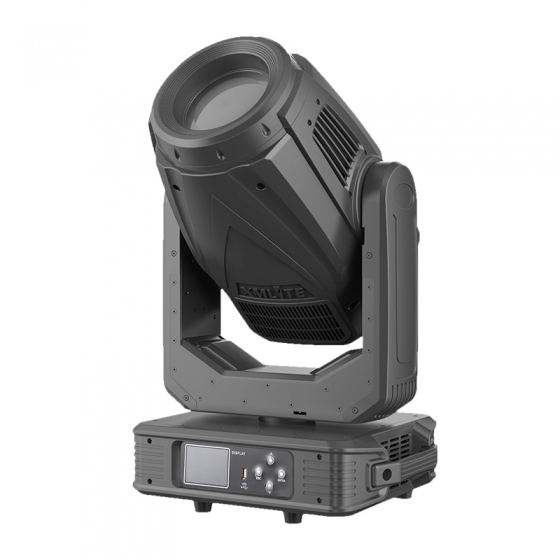

launch time of Megaplus420 beam spot hybrid moving head light was in 2019, using USHIO NSL450 light source, bulb power: 450W, is a high-performance smart pattern beam moving light; using high transmittance optical lens, the beam is thick and strong . Two gobo discs, one of which is interchangeable and rotatable. The diameter of the rotatable gobo is 22mm. The large-size LOGO film can engrave complex LOGO, which can be satisfied with the engraving of various complex LOGO; rotating prism disk 1: 8 prism, rotating prism Disk 2: 6 prisms, two disks can be superimposed, zoomable, and a variety of different prism effects can be derived. The product can be used in medium and large-scale performances, conference multi-function halls, TV stations, theaters and other places.

420W Mega Lite Moving Head

Click here for video MegaPlus 420

Click here for other all here XMlite

Mode NO : MEGAPLUS420

Channel Mode:19CH;

Light Source
Lamp: USHIO 450;
power: 110-240V,50/60Hz;
Total power: 600W;

Optical System

Beam angel : 3.2～38°;

Dimmer : 0-100% linear adjustment ;

Gobo Wheels
Fixed gobo : 14 gobo + white.
Rotation gobo: 7 gobo+ white,Replaceable.
Diameters22mm ,easy for complicated logo design ;
Rotating GOBO diameter is 21.8mm, effective diameter is 16.5mm,, GOBO is thickness 1.1mm.

Color Wheels
Corlor wheel: 11 COLORS+WHITE

Prism System
Prism:8 facet prism +6 linear prism, prism can overlay.
Frost: SEPARATELY FROST

Control & Screen
Display: 2.8 inch screen display, can reverse 180°;
USB connector can set dmx address with power and upgrade the software.
RDM function.

PAN & TILT
Pan : 540°; 8Bit/16Bit ;
Tilt : 270°; 8Bit/16Bit ;

Size & Weight
Product size: 410x250x690 mm;
Flycase: 930x520x910 mm;
Carton box: 800x420x500mm;
N.W: 25KG ;
G.W: 28 KG(carton box).

1.Power Cables

2.safety cable

3.Omega

4.User manul

5.Hooks

6.Flycase(optional)

7.Raincover(optional)
