XMLITE has already launched 420W and 350W beam moving head lights. Why do we introduce NEX430? Mainly due to fierce market competition—some countries demand beam lights with higher cost-performance. Additionally, this product can be upgraded to NEX430/NEX431, adding more prism effects.
Equipped with a 371W bulb, it’s compatible with international brand lighting libraries, supports DMX512 control, and works with global performance equipment protocols. It also comes with a cross-border after-sales technical support team.
Applicable for: Concert lights, theater lights, church lighting, sports event lighting, outdoor event lighting, wedding venue lighting, banquet hall lighting.
Mode NO : NEX 430
Channel Mode: 16CH/20CH;
Light Source
Lamp:CHINESE LY380/ OSRAM 371W S +(optional);
Light source color temperature：7700K;
Output luminous flux：13500 lm;
Color temperature：6700k
CRI：80;
10 meters illumination: 330000 lux, minimum spot 0.39m;
Rated voltage：AC110-240V~；
Voltage:：50/60Hz;
Current：4A-1.85A；
Power：445W;
Power factor：PF≥0.98；
Optical System
Beam angle：2.2°;
Display: 1.7-inch TFT display, can be reversed 180°;
Gobo Wheels
Color wheel: 14 colors + white light;
Color chip: imported Italian ODL color chip;
Color Wheels
Fixed pattern wheel: 6 patterns + 5 beams + 4 colored glass patterns;
Effect wheel: Colorful effect wheel. When the prism comes out, the effect wheel is inserted to present the colorful prism effect;
Prism System
(NEX430);Biprism: 1 circular 8-prism + circular 48-prism (8+16+24), with prism superposition function and prism zoom function
(NEX431)IF YOU CHOOSE NEX431 MODE ,THERE WILL BE TWO PRISM WHEEL
Prism Disc 1: 1 round 6-row linear prism, 1 round 8+8+8 honeycomb prism, 1 round 8+16 prism, rotatable left and right
Prism Disc 2: 1 round 8-facet prism, 1 round 6-row linear prism with mist effect, rotatable left and rightPrism Effects: The two prism discs can be superimposed, offering 11 prism effects; the superposition of two 6-row linear prisms creates a matrix pattern.Focus: supports linear focus; has fog function;
Dimming: 0-100% electronic dimming;
Strobe: supports mechanical strobe and adjustable speed strobe effects, and supports strobe macro function;
PAN & TILT
Pan：540°，8/16Bit;
Tilt：270°，8/16Bit;
IP protection level：IP20;

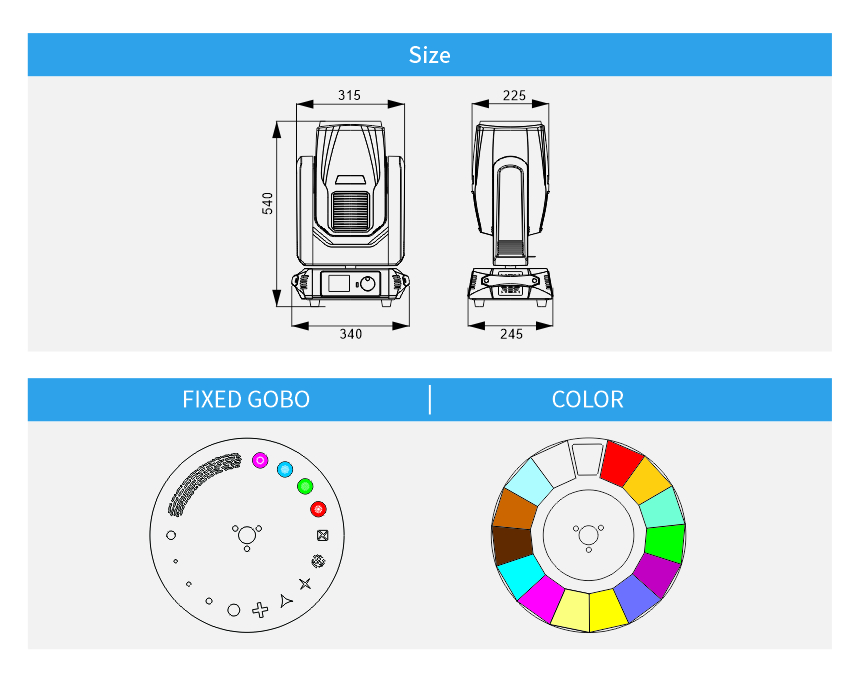

Size & Weight
Product size：340x245x540 mm;
N/W：17.5 kg;
G/W：19.5 kg;
RECOMMEND:1400W MOVING HEAD PROFILE SOPT
