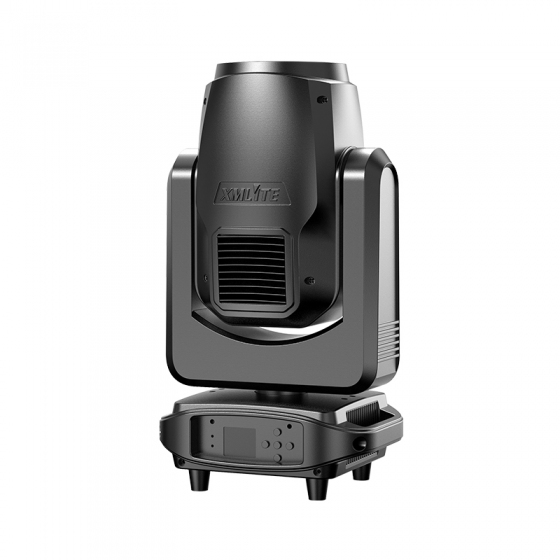

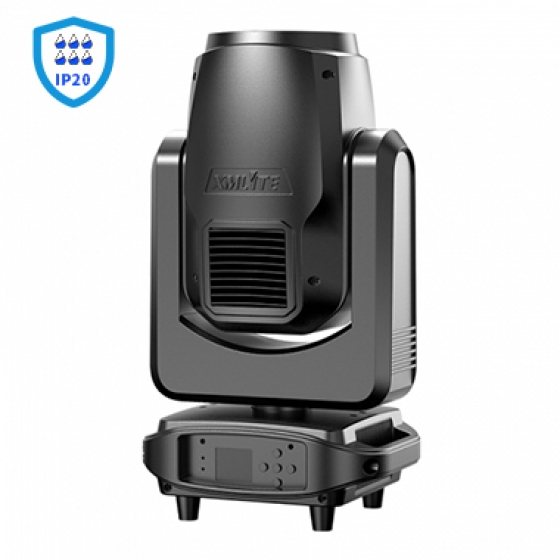

260W Beam Moving Head LightBack
- Model: NEX256
- Voltage: 110W~240V
- Bulb model: BORYLI MSD R9 260
- Effect wheel:
- Color wheel: 12 colors + white
- Gobo:
- Power:
- IP lever: 20
- Voltage:
- Size: 8.62
- Function:
- Carton size:
The 260W Beam Moving Head light adopts BORYLI MSD R9 260 light source, delivering 6700lm luminous flux at 8000K color temperature, with 2° narrow beam and 241000lux illuminance at 10m. It features Italian ODL color filters (12 colors+white), multi-type gobo wheels, prism effects, focus/frost function, dimming/strobe, 540°/270° precise movement, and a 1.7-inch reversible screen, with only 8.62kg net weight. Its compact body and rich visual effects suit small-medium theaters, Livehouses and commercial performance scenarios.
Mode:NEX256
Channels Mode : 16CH/20CH;
Light source:BORYLI MSD R9 260;
Color Temperature:8000K;
Light source life: 1500 hours;
Lamp output luminous flux: 6700 lm;
llluminance at 10 meters: 241000 lux, minimum spot 0.35 m;
Rated voltage: AC110-240V~;
Frequency:50/60Hz:
Power: 317W;
Power factor: PF>0.95;
Optical System
Beam angle: 2°;
Control & Screen
Display: 1.7-inch color display, can be reversed 180°.
Prism System
Color Wheels: 12 colors + white
Color chip: imported ltalian ODL color chip;
Fixed gobo: 8 gobos+ 2 beam gobos+ 4 stained glass gobos;
Effect wheel: Colorful efect wheel, when the prism comes out, intervene in the effect wheel, there will be a colorful prism effect;
Single prism: 8+16 circular prism, with prism rotation and zoom functions;Focus: support linear focus; with frost function;
Frost:With frost function:
Dimming: 0-100% electronic dimming;Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function;
PAN & TILT
Pan: 540°; 8 Bit/ 16Bit;
Tilt: 270°; 8 Bit /16Bit;
IP Rate: IP20;

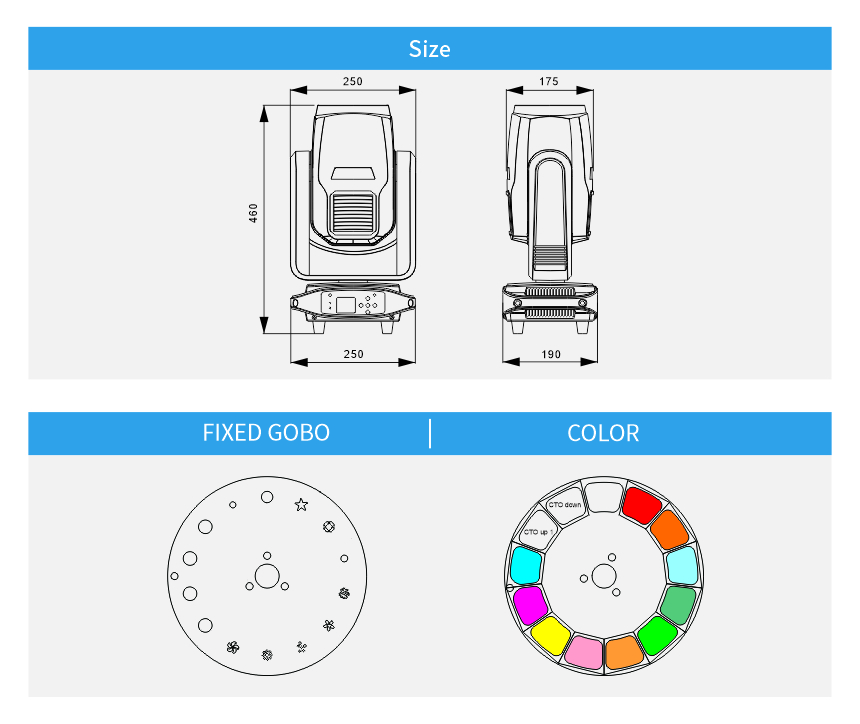

Size & Weight
Product size: 250x190x460 mm
N.W.: 8.62 kg;
