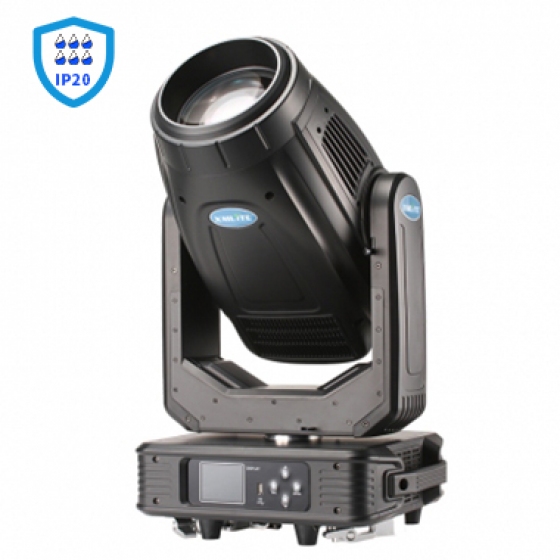

Model：Mega Plus 450C

Channels mode:19CH/24CH/31CH;

Lightsource:OSRAM SIRIUS HRI420W S ;

ColorTemperature:7700K;

Life time:2500 hours;

Light Source Luminous Flux:14500lm

10milluminance(min/max):300000 lux/0.699m,5700 lux/6.83m;

Rated voltage:AC110-240V~;

Frequency:50/60Hz;

Current:5.1A-2.3A;

Power:560W;

Powerfactor:PF>0.95;

Optical System

Display:2.8inch screen display,can reverse 180°;

GOBO Wheels

Color wheel: 10 colors+white+CMY+CTO;

Fixed gobo:14gobos+white;

Rotation gobo:7 gobos(3 stained glass gobos)+ white;

Double prism: 1 round 8 prisms + straight 6 prisms, with prism superposition function, prism zoom function;

Rotation gobo size diameter: 2l.9mm;

Usingmagnetic code reset, precise XY axis positioning;Assembled hook;

Optical System

Beam angel: 4-37°;

Dimming:0-100% mechanical dimming

Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function.

Positioning technology: High-precision magnetoelectric positioning system is adopted, precise XY axis positioning.

USB: Support to pull out the address code when the power is off, and can beused as an external interface for software upgrades.

Support the RDM protocol interface,and remotely intelligentlydial the address code through the console;

PAN & TILT

Pan:540°;8 Bit/16Bit;

Tilt:270°;8 Bit/16Bit;

IP Rate: lP20;

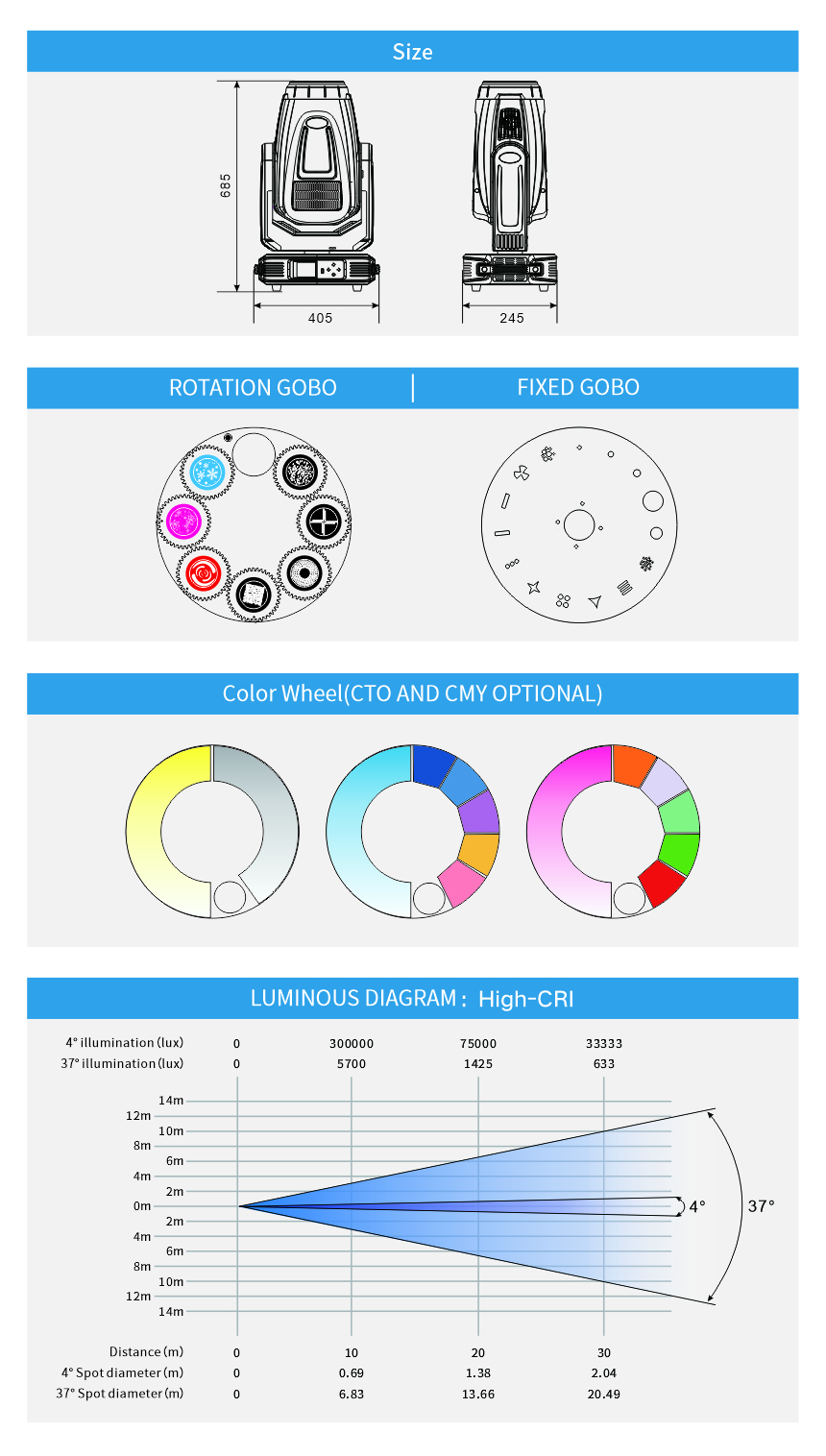

Size & Weight

Product size:405x245x685mm;

Flycaes:795x515x905 mm(Include Wheel);

Catron box: 795x420x500 mm;

N. W.: 24 kg;

G.W.: 28 kg (catron box).
