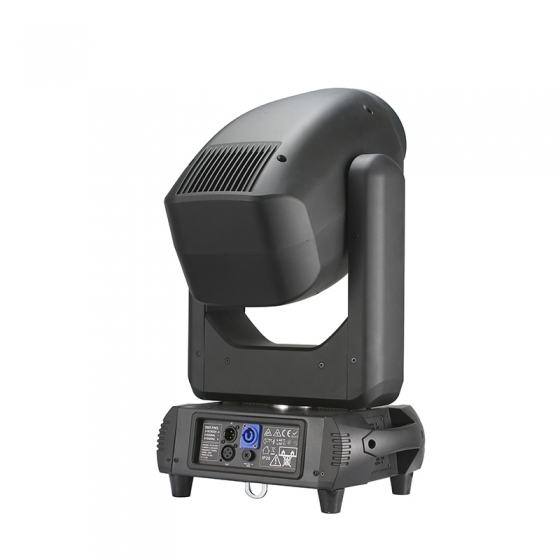

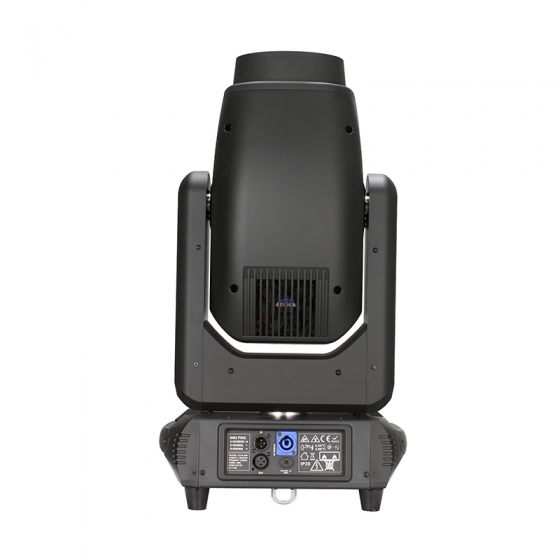

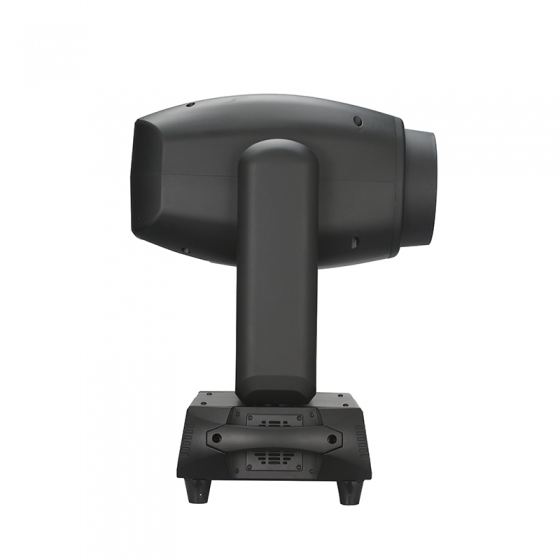

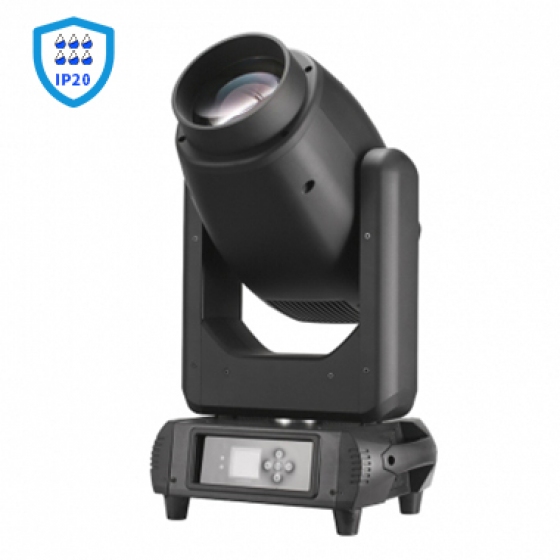

380W Moving Head HybridBack
- Model:
- Voltage:
- Bulb model:
- Effect wheel:
- Color wheel:
- Gobo:
- Power:
- IP lever:
- Voltage:
- Size:
- Function:
- Carton size:
Equipped with LY380W light source, the 380 W Moving Head Hybrid light has 21-25CH channel mode, 8000-8400K color temperature and 7953lm luminous flux. It features adjustable 3°-27° beam angle, fixed/rotating gobo wheels, double prisms, focus and atomization functions, plus precise positioning and 0-100% dimming/strobe. The 1.7-inch touch screen enables easy operation. Its flexible effects suit indoor small-medium theaters, bar performances, business conferences and brand roadshows, meeting visual needs of various scenarios.
Channels Mode: Magaplus370
Light Source
Channel mode: 21CH-25CH
Light source:LY380W
CTO: 8000-8400K;
Light source life: 1500 hours;
Output luminous flux：7953lm
Optical System
Beam angle：3°-27°;
10m illumination, 143000lux, minimum light spot 0.51m
Rated voltage: AC110-240V~；
frequency：50/60Hz;
Current：1.84A-3.68A；
Power: 405W
Power factor：PF≥0.95；
GOBO Wheels
Color wheel: 9 colors + white light;
Fixed pattern wheel: 9 patterns + 1 white light;
Rotating pattern wheel: 7 patterns + 1 white light;
Rotating pattern GOBO size: 21.7mm;
Prism System
Single prism 1: 1 circular octagonal prism, rotatable left and right,
Single prism 2: 1 circular 6-row prism, rotatable left and right,
Optical System
Focusing: Supports linear focusing; has atomization function;
Adopting optocoupler reset, XY axis positioning is precise,
Dimming: 0-100% mechanical dimming;
Support strobe and adjustable speed strobe effects, support strobe macro function;
Control & Screen
Display: 1.7-inch touch screen, can be reversed 180 degrees;
Pan:540°,8Bit/16Bit;
Tilt:270°,8Bit/16Bit;
IP Rate: IP20
Size & Weight
Product size: 343x247x613 mm;
N.W:16.2 KG;
