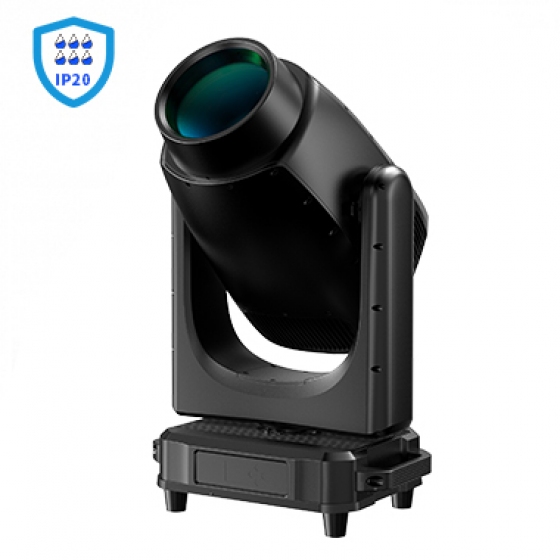

NA260
Channel mode:
Light source: 260W laser module
Light source CTO：K
Light source lifespan: 12,000 hours
Display Index:
Luminaire output luminous flux:
20 meters: Minimum angle illuminance: lux, beam spot size: m,
Maximum angle illuminance: lux, light spot m
Light output diameter: 165mm
Beam angle：
Input voltage: AC200-240V
Frequency: 50/60Hz
Current: A (200V), A (220V)
Power: W
Power factor: PF ≥ 0.95
Display: 1-inch blue LCD screen, rotatable 180°.
Color wheel: Features 20 fixed color filters + white light, CMY mixing, half-color effects, freely positionable color filters, and a bidirectional rotating rainbow effect.
Fixed GOBO wheel: 19 GOBOs + 1 white light, with GOBO shaking function.
Rotating GOBO wheel: 10 removable gobos + white light (GOBO outer diameter: φ mm, effective size: φ7mm)
Prisms: 5 prisms: 8-facet prism + 16-facet prism + 24-facet prism + 32-facet prism + 4-sided bar prism, rotatable in both directions, with prism positioning function, 16 macro functions. The prisms can be stacked in pairs to produce different light beams and kaleidoscope effects.Frost: Linear frost function
Iris: Mechanical linear aperture, with adjustable spot size.
Dimming: 0-100% linear dimming, with a magnetic-electric positioning system for precise retrieval and reset, resulting in higher accuracy.
The performance is highly reliable.
Strobe: The maximum frequency can reach 25Hz, and random strobing and pulsed strobing options are available.
USB: Supports unplugging the address code without power supply, and can be used as an external interface for software upgrades.
Protocol: DMX512, supports RDM protocol, allowing for remote intelligent address code setting via the control console.
Positioning technology: Utilizing a high-precision magnetic-electric positioning system, resulting in more accurate XY-axis positioning.
Pan:540°;8 Bit/16Bit;
Tilt:270°;8 Bit/16Bit;
IP protection level:IP65
Product size：424x273x730mm
Flycaes：
Catron box：
N.W.：kg
Angle/Spot Diameter：
