Rainproof 1000W LED Profile Moving Head LightBack
- Model:
- Voltage:
- Bulb model:
- Effect wheel:
- Color wheel:
- Gobo:
- Power:
- IP lever:
- Voltage:
- Size:
- Function:
- Carton size:

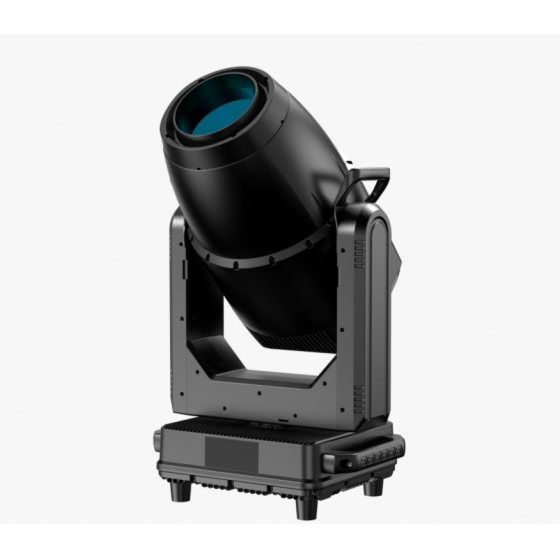

Mode NO : Rainproof 1000W LED Profile Moving Head Light
Channels mode： 37CH / 38CH / 41CH
Light Source：1000W LED White Light Module
Source CTO: 8400K
Fixture Output CTO: 7049K
Light Source Lifespan: 20,000 hours
Fixture Output Luminous Flux: 41,952 lm
@10m: Minimum Angle Illuminance: 12,861 lux, Minimum Spot Diameter: 1.18m
Maximum Angle Illuminance: 368 lux, Spot Diameter: 10m
Beam Aperture: 130mm
Zoom Angle : 7° - 51°
Input Voltage: AC 110-240V
Frequency: 50/60Hz
Current: 11.54A (110V), 5.77A (220V)
Power Consumption: 1270W
Power Factor: PF ≥ 0.95
Control & Screen
Display: 2.8-inch Blue LCD Screen, reversible 180°
Color Wheel: 4 Fixed Color Filters + CRI Filter + Warming Filter + Open (White Light), CMY + CTO; CTO Color Temperature: 2000-7400K linearly adjustable
GOBO Wheels
Fixed Gobo Wheel: 8 Gobos + 1 Open (White Light)
Rotating Gobo Wheel: 6 Interchangeable Gobos + Open (White Light) (LOGO Disc Outer Diameter: φ27mm, Effective Area: φ19mm, Thickness: 1.1mm)
Prism System
Prism: 1 Four-facet Prism, reversible rotation
Frost: Linear Frost Effect
Iris: Mechanical Linear Iris, adjustable spot size
Shutter / Cutter: Four-blade Full-frame Graphic Cutter Module, profile patterns rotatable 180°
Dimming: 0-100% Mechanical Dimming, Search/Reset Magnetoelectric Positioning System for higher precision, reliability, and performance
USB: Supports address code setting without power; external interface for software upgrades
Protocol: DMX512, supports RDM protocol, allows remote address code setting via console
Positioning Technology: High-precision Magnetoelectric Positioning System for more accurate X/Y Axis positioning
PAN & TILT
Pan: 540°; 8Bit/16Bit
Tilt: 270°; 8Bit/16Bit
IP Rate: IP54
Size & Weight
Product Size: 426 x 300 x 772 mm
N.W: 38.76 kg
