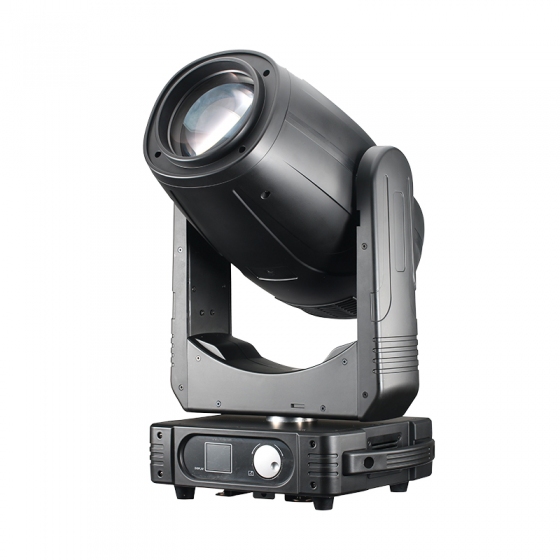

LED Hybrid Moving HeadBack
- Model: Exp370
- Voltage: 110-240V,50/60Hz
- Bulb model: LED170
- Wffect wheel:
- Color wheel: 9 colors+white
- Gobo: 1Fixed gobo+1Rotation gobo
- Power: 250W
- IP lever: 20
- Voltage:
- Size: 19KG
- Function: 19 KG
- Carton size: 368*267*594mm
Youtube Link:EXP370 VIDEO HERE
Mode NO : Exp370
Channel Mode:16/24CH
Light Source
Light Source: LED Lamp 170W
Life time:20000Hours
Optical System
Beam angel : 3～30°;
Dimmer : 0-100% l inear adjustment ;
Gobo Wheels
Fixed gobo : 9 gobo + white
Rotation gobo: 9 gobo+ white,effect;
Gobo size diameter:15.9mm ,image diameter:13mm;
Color Wheels
9 colors+white
Prism System
8 facet prism+ 3facet prism,fixed frost function,
Control & screen
Display: 2.8 inch screen display, can reverse 180°;
USB:USB connector cn set DMX address without power switch on and upgrade the software.
PAN & TILT
Pan:540°;8 Bit/16 Bit
Tilt:270°;8 Bit/16 Bit
Electrical info
Input voltage range: AC 110-240V, 50/60Hz
Total Power: 250W
Size & Weight
Product size: 368*267*594mm;
N.W: 19 KG;
G.W: 22 KG kg(carton box).
Flycase G.W.: 73KG
Flycase: 860*470*810mm
1.Power Cables
2.safety cable
3.Omega
4.User manual
5.Hooks( integration)
6.Flycase(optional)
7.Raincover(optional)
