  • 600W 5 COLORS LED PROFILE MOVING HEAD LIGHTBack

  • Model:
  • Voltage:
  • Bulb model:
  • Effect wheel:
  • Color wheel:
  • Gobo:
  • Power:
  • IP lever:
  • Voltage:
  • Size:
  • Function:
  • Carton size:
  • {$title}

H5 is a multi-color LED profile movinghead light launched by Xiangming Lighting in 2022. It adopts 600W LEDfive-color RGBAL(Red+Green+Blue+Amber+Lemon)LED light source module, and thelight source life is 20,000 hours;

H5 is the smaller version of H10 , as wefind the new led source which could make the profile effects much high efficiency!

it can realize digital color changewithout color wheel and CMY glass sheet, and the color is positive. Linearcolor temperature (2700K-7500K) white light high rendering index. During thedimming process, the CRI and color temperature change very little, CRI 96, R989 and TLCI can reach 94. Optical angle range: 5.5-39°.

The the traditional discharge lampprofile light source has good spectrum, high CRI, but short light source life;white LED profile source has long life but weak color effect, and thebrightness decreases greatly when the high CRI is taken; 5-color light sourcecombines the advantages of the above two and has a good spectrum. , CRI ishigh, and the light source has a long life.H10 is equipped with two gobo discs,6+1 rotating gobos, 8+1 fixed gobos, one prism disc, two atomization modes,four-piece cutting light system, which can be turned 180 degrees and can beturned off with one knife. The heat dissipation structure adopts high-densitycopper tube radiator, which realizes intelligent temperature management and ismore silent.



ModeNO:H5

600W LED PROFILE RGBAL Engine

ChannelsMode 36/52/56CH



LightSource
Lamp: RGBAL 600WLED 5 Color LED Engine

Red +Green+Blue +Amber +Lemon
LED Engine ;Life time
20000 hours;
Light equipment output
16000lm

OpticalSystem
Beam angel : 5.5°~39°;
Dimmer : 0-100% linear adjustment ;
Iris: Diaphragm adjustable


GoboWheels
Fixed gobo :   8 gobo + white.
Rotation gobo:  7 gobo+ white, changeable;


ColorWheels
LED 5 colors source engine

Red +Green +Blue +Amber +Lemon, digital color mix.

CTO: 2700K-7500K can keep high CRI duringdimming

PrismSystem
Prism:  4 facet prism ,Frost function;

FramingSystem
Cut: 4 blades. After cut, the pattern can rotation 180°
Position lock system: Magnetism position lock system

Control& Screen
Display: 2.8 inch screen display, can reverse 180°;

Connector can set DMX address with power and upgrade thesoftware.

ElectricalInfo
Power: AC180-240V,50/60Hz;
Total power: 1400W;

PAN& TILT
Pan : 540°;  8Bit/16Bit ;
Tilt :  270°;  8Bit/16Bit ;


Size& Weight

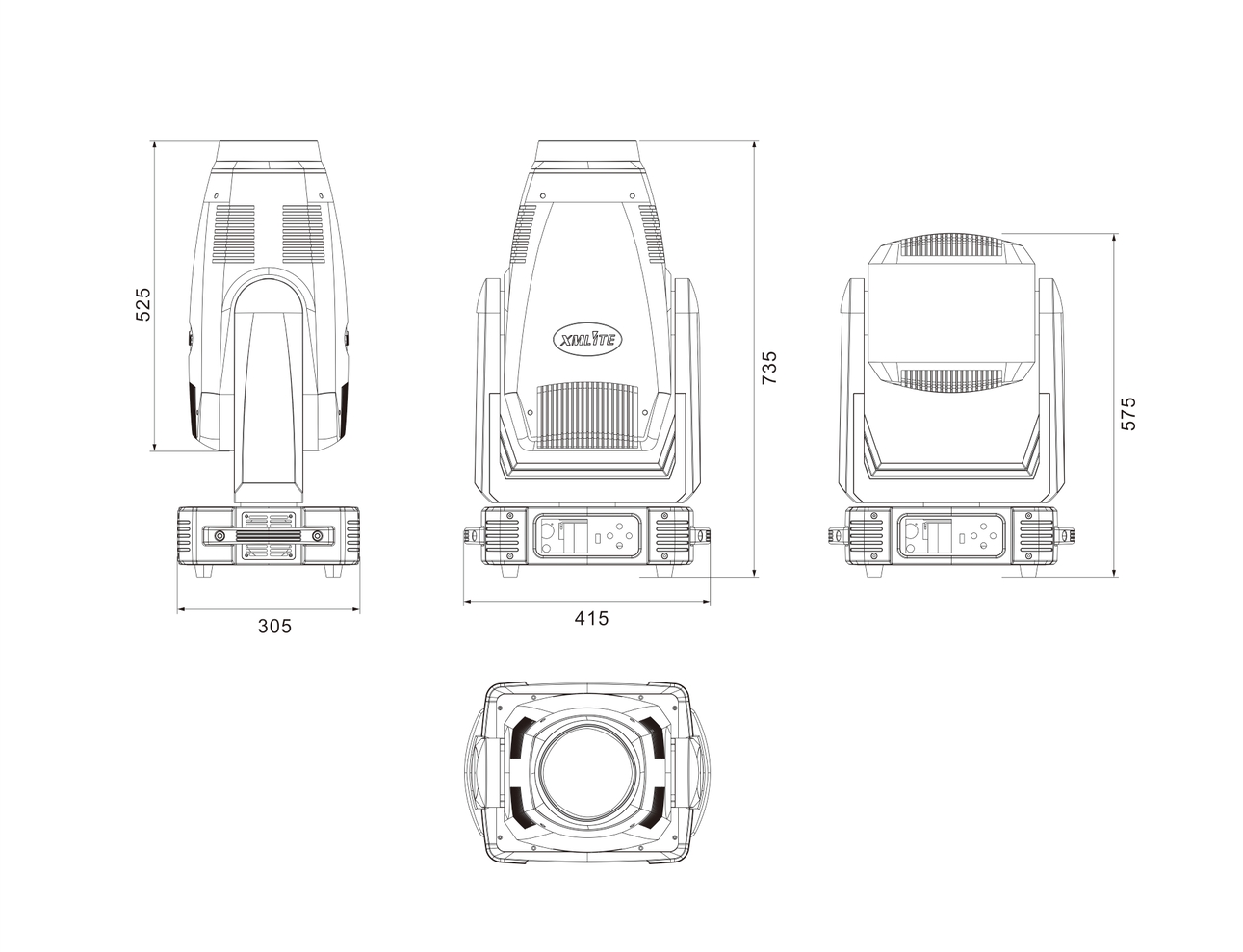

Product size: 740x415x310mm;
N.W:30KG ;
G.W:32KG
