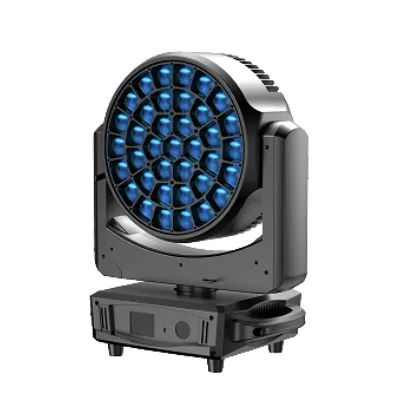

37*40W RGBW LED WASH

Model: LM940

Channel Modes: 16CH / 24CH

Light Source: LY380W

Color Temperature: 8000-8400K

Source Life: 1500 hours

Luminous Flux: 8127 lm

Illuminance @10m: Fixed Gobo 164255 lux, Minimum Spot Size 0.53m

Aperture: 128mm

Zoom Angle: Fixed Gobo 3° - 28°, Rotating Gobo 4.2° - 42°

Input Voltage: AC 110-240V

Frequency: 50/60 Hz

Current: 3.68A (110V), 1.84A (220V)

Power: 405W

Power Factor: PF ≥ 0.95

Display: 1.7-inch touch screen, reversible 180°

Color Wheel: 9 colors + White

Fixed Gobo Wheel: 9 gobos + 1 open (white)

Rotating Gobo Wheel: 7 rotating gobos + 1 open (white) (LOGO diameter φ21.7mm, effective area: φ10mm)

Prism 1: 1 ircular 8-facet prism, rotation (left/right)

Prism 2: 1 circular 6-row line prism, rotation (left/right)

Frost: 1 frost filter

Dimming: 0-100% mechanical dimming, supports strobe and variable speed strobe effects, supports strobe macro function

Protocol: DMX512, RDM protocol supported. Address can  be changed remotely via console.

Reset: Opto-reset, precise XY positioning.

Pan:540°;8 Bit/16 Bit;

Til:270°;8 Bit/16 Bit;

IP Rate: IP20

Dimensions: 343 x 247 x 613 mm

Net Weight: 16.21 kg
