Product Specifications
| Model | LM350B |
|---|---|
| Bulb Model | 350W LED Source |
| Effect Wheel | Gobo Effects Wheel: 3 gobos + color wheel +FrostRotating Gobo Wheel: 4 gobos +1 white (OuterDiameter: 29.9mm, Effective Size: 18mm) |
| Color Wheel | 12 colors +white |
| IP Level | IP20 |
| Size | 17kg |
- Product Description

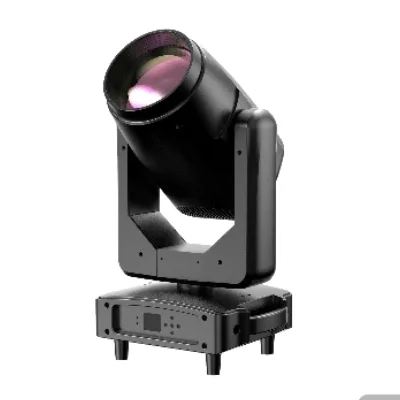

The LM350B is a 350W high-efficiency LED moving head beam light with a 20000-hour lifespan and 7460lm luminous flux, delivering 49818lux high illuminance at 10 meters. It features 12 color filters, multi fixed and rotating gobos, dual bidirectional rotating prisms, and integrated gobo, color and frost effects. Adopting 0-100% electronic dimming and speed-adjustable strobe, it supports DMX512 and RDM remote control. Equipped with a magnetic reset system for precise 540° pan and 270° tilt positioning, it comes with a detachable folding hook. Lightweight and reliable, it is ideal for stage performances, bars and various event lighting scenarios.
Model：LM350B
ChannelMode:18CH
Light Source: 350W LEDSource CTO:7640K
Lamp Life: 20000 hoursLuminaire
Output Flux: 7460 Im10-meter
Illuminance: 49818lux, minimum spot size 0.53 m
Beam Aperture: 156 mm
Beam Angle: 30 (Zoom Angle:8.8°)
InputVoltage: AC 10-240V
Frequency: 50/60 Hz
Current: 3.55A (110V),1.77A (220V)
Power:350w
Power Factor: PF > 0.95
Display: 1.77-inch color screen with buttons
Color Wheel: 12 colors +white
Fixed Gobo Wheel: ll gobos + white
Gobo Effects Wheel: 3 gobos + color wheel +FrostRotating Gobo Wheel: 4 gobos +1 white (OuterDiameter: 29.9mm, Effective Size: 18mm)
Prism Wheel: 1 eight-facet prism,1 six-row linear prism, can rotate left/right
Dimming: 0-100% electronic dimming, supports electronic strobe and adjustable-speed strobe effectsProtocol: DMx5I2, supports RDM protocolinterface,allows remote addrescode changes vid consoleMagnetic reset system, precise Pan/Tit positioning,
detachable
folding hook,optionalyoke bridge available
Pan: 540°;8 Bit/16 Bit;
Til:270°;8Bit/16Bit;
IP Rate: IP20
Product Size: 608.5x342.5x 259 mm
Net Weight:17kg
