01 Product Overview

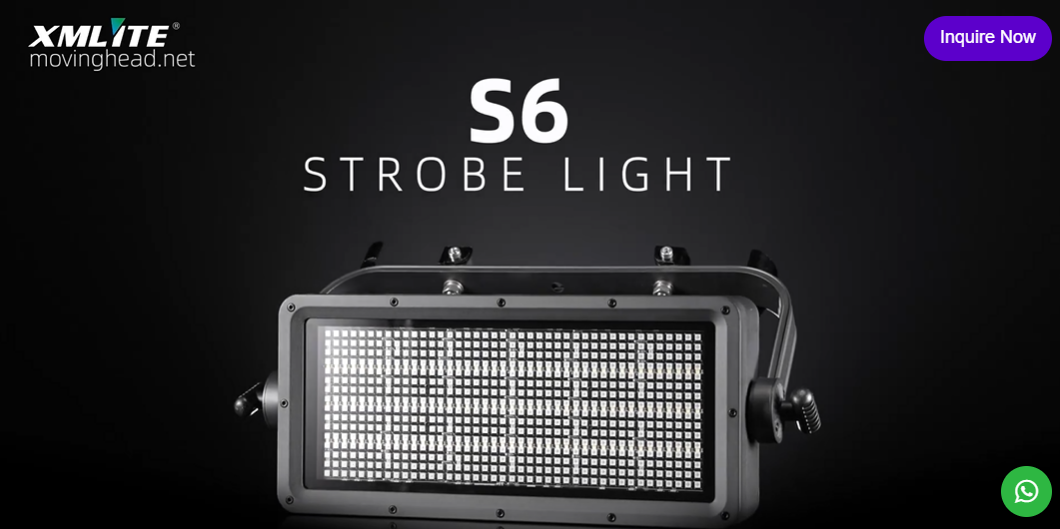

The S6 is a high-power LED Strobe Light designed for professional stage art and outdoor performance scenarios. Its naming carries a special meaning: the letter "S" stands for Square, corresponding to its sleek and minimalist square appearance, while the number "6" anchors its high power of over 600W. Positioned as a professional LED Light, it is also an ideal choice for Outdoor Stage Light applications. Nowadays, square strobe lights have become mainstream in the stage art field, thanks to their far higher brightness than traditional LED PAR lights and high compatibility with mainstream equipment such as LED screens and Layher trusses, achieving dual adaptation of vision and installation. The S6 maximizes the advantages of square luminaires, integrating square surface light emission, integrated structure, powerful light effects and lightweight body, breaking the bulky limitations of traditional stage lights and redefining the standard for high-power waterproof strobe lights.
02 Appearance Design
This LED Strobe Light features a highly recognizable appearance. The whole body is made of integrated die-cast aluminum, completely getting rid of the splicing feeling of traditional lamps, with smooth and neat lines and a high-grade minimalist texture that fits the aesthetic needs of various indoor and outdoor scenarios. With a compact body size of 570x135x250mm and a precise light-emitting surface of 362*140mm, it is small in size and flexible in installation, perfectly suitable for indoor professional venues, commercial performances, outdoor music festivals and temporary exhibitions. It is an Outdoor Stage Light that combines both aesthetics and practicality.
03 Structural & Performance Advantages

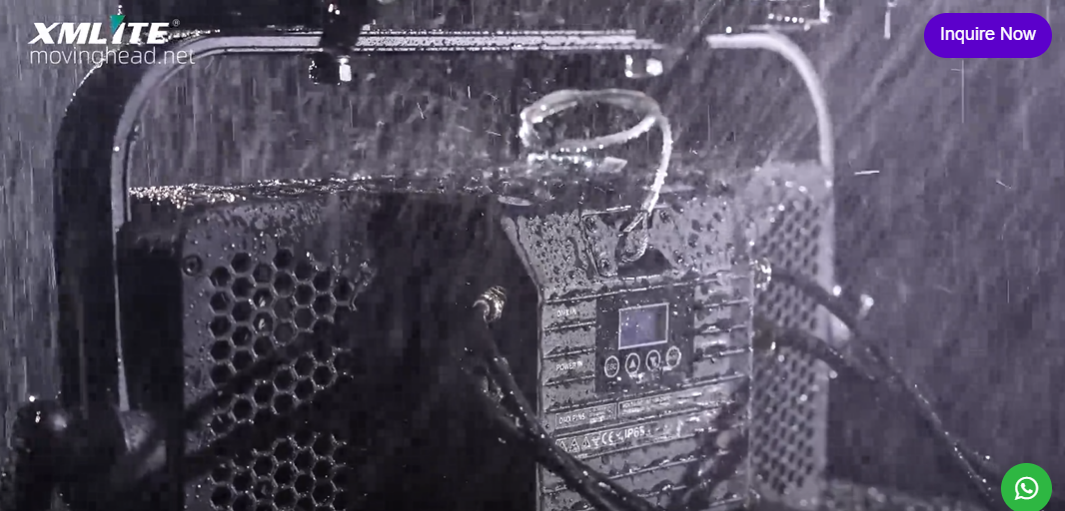

The integrated die-cast aluminum structure not only endows the S6 with an outstanding appearance, but also brings hardcore durability. The die-cast aluminum material features high strength and corrosion resistance, making the body stable and sturdy to withstand bumps during transportation and installation, and resist erosion from complex outdoor environments such as wind, sand and humidity, ensuring long-term use without damage. The core highlight is its IP66 high waterproof rating, which completely breaks the indoor and outdoor usage limits, enabling stable operation even in outdoor rain, snow and humid environments, adapting to various harsh outdoor scenarios. Paired with the iconic square surface light-emitting design, it has a wider irradiation range, uniform and delicate light spot projection without dark areas, making stage light and shadow layering more distinct.
04 Core Light Effect Performance

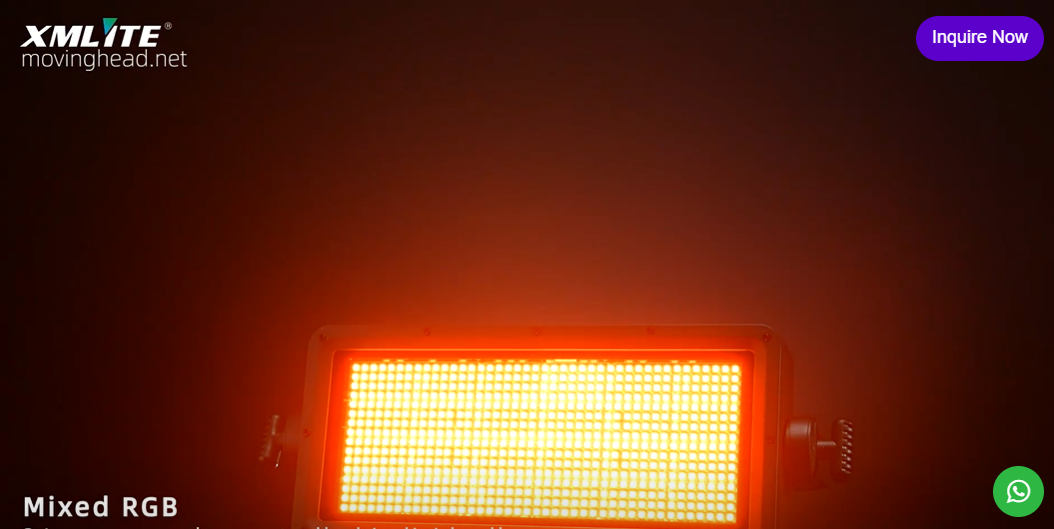

As a professional LED Strobe Light and Outdoor Stage Light, the S6 adopts a 2-in-1 core design of color washing and strobing, realizing multi-purpose use with one light and greatly reducing lighting deployment costs with high cost-effectiveness. The 650W high-power base provides strong light output, equipped with a dual light source combination of 672pcs 1.5W RGB 3-in-1 LEDs and 126pcs 2W cool/warm 2-in-1 LEDs, creating full-color RGB+W+A amber light effects with rich and full colors and distinct layers. The luminous flux is up to 20000lm, matched with an ultra-wide 110° floodlight angle for large-area uniform lighting, meeting the lighting needs of large stages and outdoor venues. It also supports an ultra-wide color temperature range of 2000K-8000K, with 24 individually controllable RGB zones and 18 individually controllable cool white/golden yellow zones. It can not only achieve powerful 1-22Hz strobes to create stage highlight moments, but also create soft ambient light and complete large-area color filling, adapting to diverse stage lighting needs.
05 Lightweight & Control Design
The S6 breaks the industry pain point that high-power lights must be bulky, achieving extreme lightweight while maintaining powerful performance. With a net weight of only 8.25KG, it is much lighter than professional stage lights of the same power and brightness. A single person can easily complete installation, disassembly and transportation without the assistance of heavy equipment, effectively saving labor and transportation costs, especially suitable for highly mobile scenarios such as outdoor performances and touring exhibitions, making the deployment of Outdoor Stage Light more efficient. In terms of control, it supports multi-channel modes of 8CH/16CH/23CH/114CH, compatible with DMX512, RDM, auto-run and master-slave control modes, paired with 16Bit curve electronic linear dimming and multi-mode strobing (random strobing, pulse strobing), with rich built-in light effects, flexible and precise operation to meet the refined creation needs of professional lighting designers.
06 Product Summary
From appearance design to hardcore performance, from portable practicality to all-scenario adaptation, the S6 Waterproof Square LED Strobe Light perfectly integrates three core selling points: lightweight & stylish, high brightness, waterproof & durable, making it an all-round professional LED Light. With comprehensive advantages including integrated die-cast aluminum structure, IP66 high waterproof, uniform and delicate square light emission, multi-purpose 2-in-1 function and lightweight portable design, it accurately adapts to the needs of professional stage art, outdoor performances, commercial events and venue layout, providing a broad creative space for lighting creators and becoming a new benchmark for high-power Outdoor Stage Light.
07 Technical Parameters
Channel modes: 8CH/16CH/23CH/114CH
Light source: 672 pcs 1.5W RGB 3-in-1 LEDs, 126 pcs 2W cool/warm 2-in-1 LEDs
Color temperature: 2000K-8000K
Luminous flux: 20000lm
Floodlight angle: 110°
Aperture size: 362*140mm
Input voltage: AC 100-240V
Frequency: 50/60Hz
Power: 650W
Display: TFT touch screen
Color control: 24 individually controllable RGB zones, 18 individually controllable cool white/golden yellow zones
Dimming: Electronic linear dimming, 16Bit curve dimming
Strobing: 1-22Hz, supporting random strobing and pulse strobing
Control modes: DMX512, RDM, auto-run, master-slave
Intelligent temperature control: Built-in temperature monitoring system, automatically adjusting heat dissipation and power output
Operating temperature: -20~45℃
IP rate: IP66
Product size: 570x135x250mm
Flight case size: 975x590x525mm (6 in 1)
Net weight: 8.25KG
