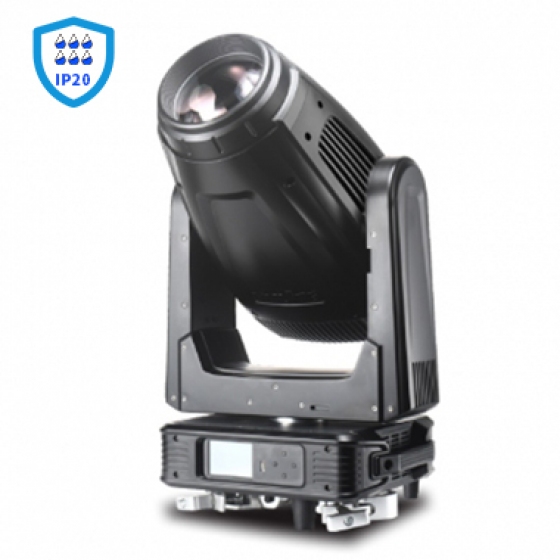

  • 800W LED Profile Moving head light,LED Framing Moving Head lightBack

  • Model: H9
  • Voltage: 110-240
  • Bulb model: 800LED WHITE ENGINE
  • Effect wheel: /
  • Color wheel: CMY+CTO
  • Gobo: Fixed gobo : 9 gobo + white. Rotation gobo: 7 gobo+ white,changeable
  • Power:
  • IP lever:
  • Voltage:
  • Size:
  • Function:
  • Carton size:
  • {$title}

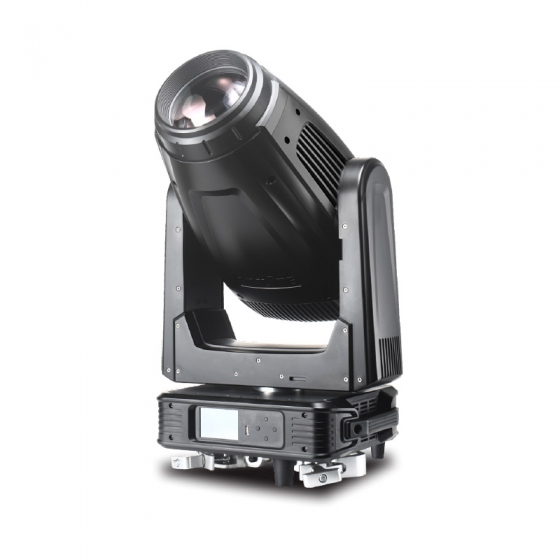

The H9 led profile moving head light was launched in 2020. It uses a high efficiency white LED module light source with a light source life up to 20,000 hours. It is a professional LED  profile moving head light; advanced optical system, angle range 5-52°; adopts high thermal conductivity copper pipe and fan cooling system, which is more silent; XMlite patented technology 180° flip fast graphics framing system, can be cut into different graphics, slice positioning is accurate, four sides are clear; CMY stepless color mixing, multi color wheel can fully satisfy The light director; the spot uniformity is as high as 90%, and it has a interchangeable rotating gobo plate, with a clear and sharp pattern effect; small size and light weight.


Channels Mode 42/49CH;

Light Source
Lamp: 800W White LED Engine ;
Life time:20000 hours;
Light Source Luminous Flux:35000LM;

Optical System
Beam angel : 5.552°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable

Gobo Wheels
Fixed gobo :   9 gobo + white.
Rotation gobo:  7 gobo+ white,changeable;

Color Wheels
7 fix colors+white+CMY+CTO.CT:3200-6000K

Prism System
Prism:  4 facet prism ,2 level frost function;

Framing System
Cut: 4 plates. After cut, the pattern canrotation 180°
Position lock system: Magnetism position lock system

Control & Screen
Display: 2.8 inch  screen display, can reverse 180°;

Connector can set DMX address with power and upgrade thesoftware.

Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 1000W;

Pan : 540°;  8Bit/16Bit ;
Tilt :  270°;  8Bit/16Bit ;

Size & Weight
Product size:  438x302x787mm;
Carton box: 540X400X880mm;
N.W: 36KG ;
G.W: 39 KG
