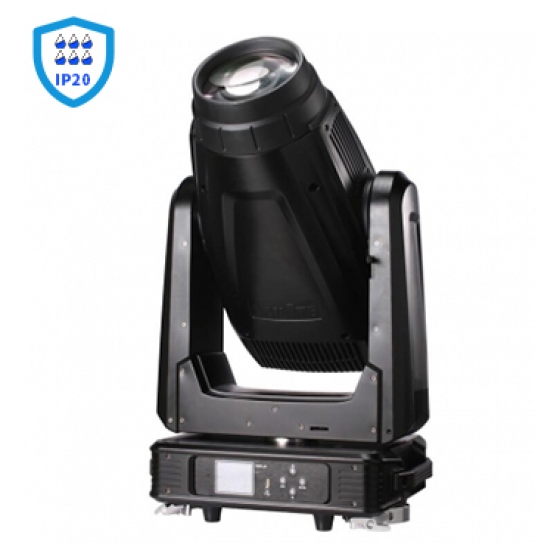

FIVE COLORS LED PROFILE(RGBAL)Back

H10 is a multi-color LED profile moving head light launched by Xiangming Lighting in 2022. It adopts 1000W LED five-color RGBAL(Red+Green+Blue+Amber+Lemon)LED light source module, and the light source life is 20,000 hours; it can realize digital color change without color wheel and CMY glass sheet, and the color is positive. Linear color temperature (2700K-7500K) white light high rendering index. During the dimming process, the CRI and color temperature change very little, CRI 96, R9 89 and TLCI can reach 94. Optical angle range: 5.5-39°, steady-state luminous flux 20000lm.

The the traditional discharge lamp profile light source has good spectrum, high CRI, but short light source life; white LED profile source has long life but weak color effect, and the brightness decreases greatly when the high CRI is taken; 5-color light source combines the advantages of the above two and has a good spectrum. , CRI is high, and the light source has a long life.H10 is equipped with two gobo discs, 6+1 rotating gobos, 8+1 fixed gobos, one prism disc, two atomization modes, four-piece cutting light system, which can be turned 180 degrees and can be turned off with one knife. The heat dissipation structure adopts high-density copper tube radiator, which realizes intelligent temperature management and is more silent. The net weight of the product is 38kg, and the size is 815*460*310The color transition of H10 is more natural and smooth than the traditional mechanical color change, the high and low color temperature can be adjusted freely, and the high CRI of white light can be achieved while retaining the brightness of the lamp itself, perfectly retaining the texture of actors and props themselves, and improving the quality of video and video. At the same time, the new generation of color management system ensures the color consistency between multiple lamps, giving lighting designers more freedom to play.

CLICK HERE FOR VIDEO

ModeNO:H10

1000W LED PROFILE RGBAL Engine

ChannelsMode:  36/52/56CH;

LightSource
Lamp: RGBAL 1000WLED 5 Color LED Engine

（Red +Green+Blue +Amber +Lemon）
LED Engine ;Life time：20000 hours;
Light equipment output：20000lm；

OpticalSystem
Beam angel : 5.5°～39°;
Dimmer : 0-100% linear adjustment ;
Iris: Diaphragm adjustable

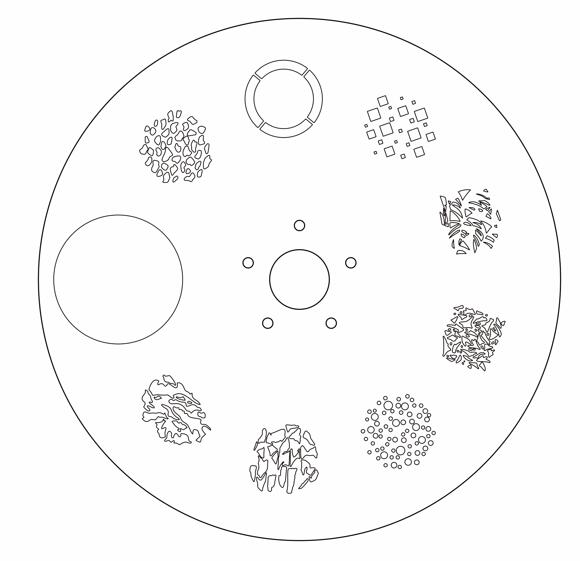

GoboWheels
Fixed gobo :   8 gobo + white.
Rotation gobo:  7 gobo+ white, changeable;

ColorWheels
LED 5 colors source engine
Red +Green +Blue +Amber +Lemon, digital color mix.
CTO: 2700K-7500K can keep high CRI duringdimming

PrismSystem
Prism:  4 facet prism ,Frost function;

FramingSystem
Cut: 4 blades. After cut, the pattern can rotation 180°
Position lock system: Magnetism position lock system

Control& Screen
Display: 2.8 inch screen display, can reverse 180°;

Connector can set DMX address with power and upgrade thesoftware.

ElectricalInfo
Power: AC180-240V,50/60Hz;
Total power: 1400W;

PAN& TILT
Pan : 540°;  8Bit/16Bit ;
Tilt :  270°;  8Bit/16Bit ;

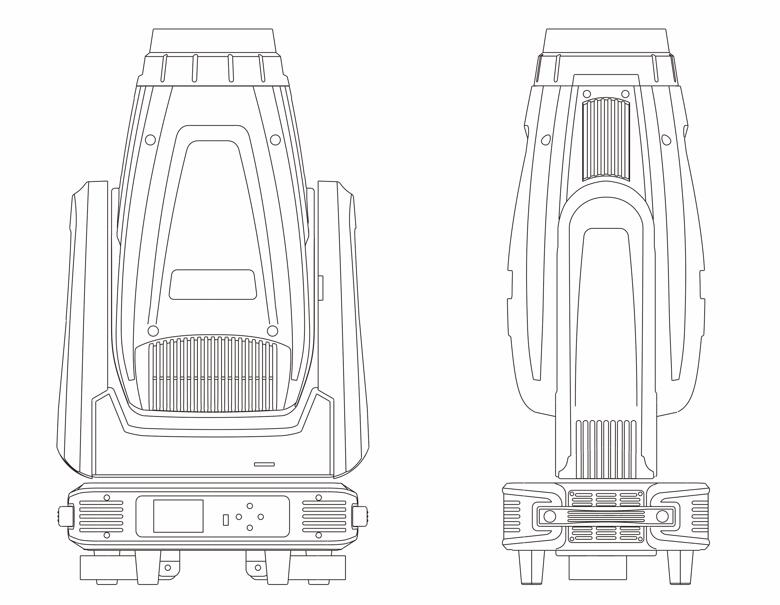

Size& Weight
Product size:  820x460x310mm;
N.W:38.5KG ;
G.W:42KG
