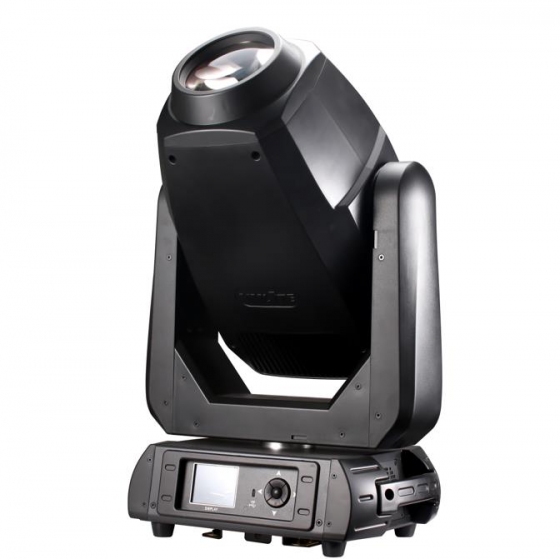

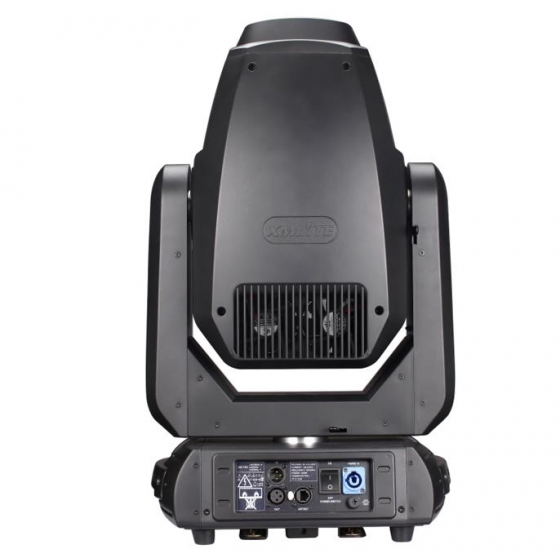

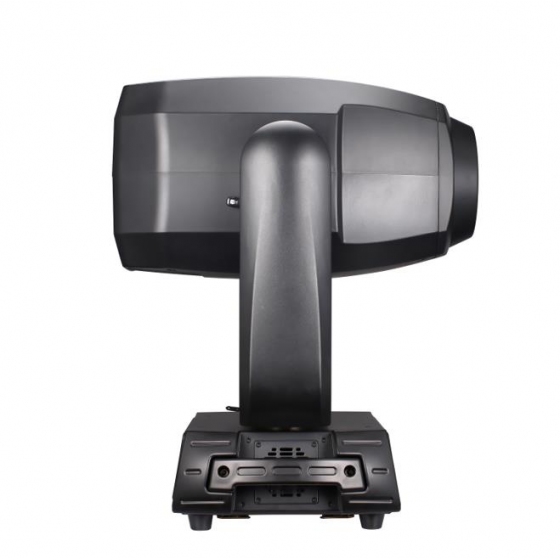

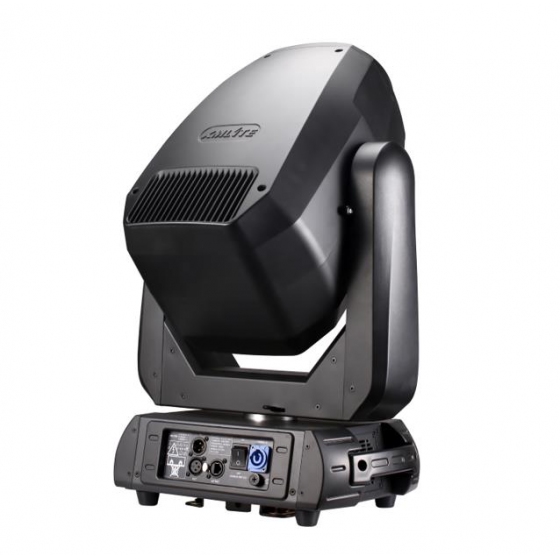

600W LED PROFILE MOVING HEAD LIGHTBack
Model: H5
Voltage: 110-240
Bulb model: 600W LED WHITE
Effect wheel: 0
Color wheel:
Gobo:
Power:
IP lever:
Voltage:
Size:
Function:
Carton size:
{$title}

H3 is the smallest led profile in XMlite led profile moving head light product range.

Based on the customer requirement ,we launched this mode , a 500w white engine with supper smallest size shell with full functions.latest led moving head light ,600W led profile moving head light with spot , wash and framing system.smallest size and weightness only 22.5KG!

Video click here(LED SOURCE HAVE UPDATE TO 600W)

Modle:H3

Channels Mode: 44/45/50CH;

Light Source
Lamp: 600W White LED Engine ;
Life time：20000 hours;
Light Source Luminous Flux：17687lm(UPDATING)；
Illuminance at 10m:9900lux,minimum spot 1.35m

Optical System
Beam angel : 8～53°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable

Gobo Wheels
Fixed gobo : 9 gobo + white.
Rotation gobo: 7 gobo+ white,changeable;

Color Wheels
6 fix colors+white+CRI+CMY+CTO.

Prism System
Prism: 3 facet prism ,Frost function;

Framing System
Cut: 4 plates.Aftercut,the pattern canrotation 180°
Position lock system: Magnetism positionlock system

Control & Screen
Display: 2.8 inch screen display, canreverse 180°;

Connector can set dmx address with power and upgrade the software.

Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 650W;

PAN & TILT
Pan : 540°; 8Bit/16Bit ;
Tilt : 270°; 8Bit/16Bit ;

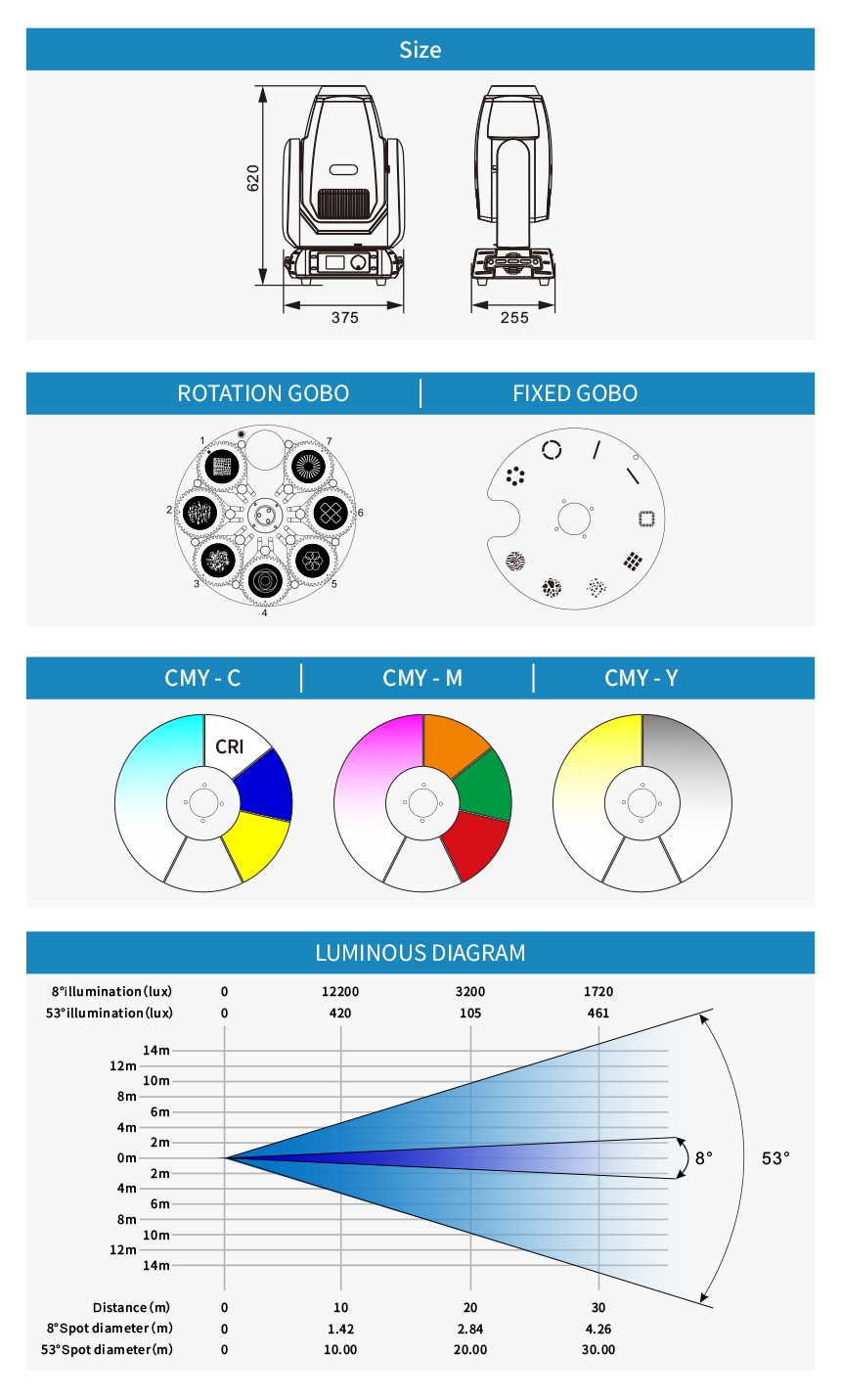

Size & Weight
Product size: 375x255x620mm;
Carton box: 690x325x440 mm;
N.W: 22.5KG ;
G.W:25KG(carton box)
