Product Specifications
| Model | MF9 |
|---|---|
| Bulb Model | 800W*2 White LED Engine |
| Effect Wheel | Prism: 4 facet prism ,2 level frost function; |
| Color Wheel | 7 fix colors+white+CMY+CTO.CT:3200-6000K |
| Gobo | 7 gobo+ white,changeable |
| IP Level | IP20 |
| Size | 36KG |
- Product Description
About MF9 double led source profile , it is a totallynew products we launched on 2022 Oct. It based on double led source , each is800 W white led engine. While one is for high brightness version(Ra70, 31800lm),another is high Cri led source(Ra96 ,outputbrightness is 19200lm).This mode could used in more place than other profilebecause it can support two different led source function.
Click here for video link: HERE IS VIDEO ,PLS CLICK HERE
Modle: MF9
Channels Mode: 37/41CH;
Light Source
Lamp: 800W*2 White LED Engine ;
Life time：20000hours;
Light Source Luminous Flux：
high brightness version: Ra70, 31800lm,
high Cri led source: Ra96, 19200lm
OpticalSystem
Beam angel: 5～52°;
Dimmer : 0-100% linear adjustment ;
Iris: Disphragm adjustable
Gobo Wheels
Fixed gobo: 9 gobo + white.
Rotation gobo: 7 gobo+ white,changeable;
Color Wheels
7 fix colors+white+CMY+CTO.CT:3200-6000K
Prism System
Prism: 4 facet prism ,2 level frostfunction;
Framing System
Cut: 4 plates. After cut, the pattern can rotation180°
Position lock system: Magnetism position lock system
Control & Screen
Display: 2.8 inch screen display, canreverse 180°;
Connector can setDMX address with power and upgrade the software.
Electrical Info
Power: AC180-240V,50/60Hz;
Total power: 1000W;
PAN& TILT
Pan : 540°; 8Bit/16Bit ;
Tilt : 270°; 8Bit/16Bit ;

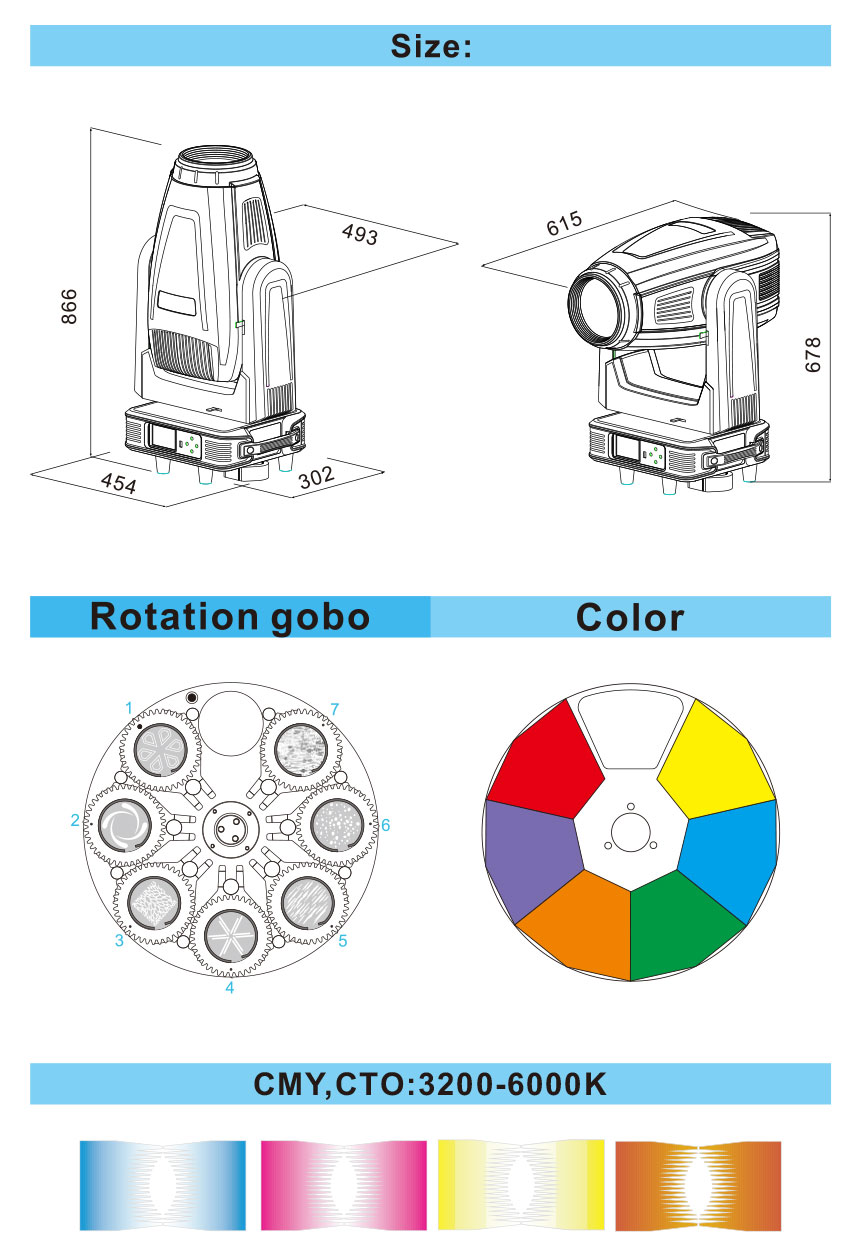

Size & Weight
Product size: 438x302x787mm;
Carton box: 540X400X880mm;
N.W: 36KG ;
G.W: 39 KG
