Product Specifications
| Model | WP380 |
|---|---|
| Bulb Model | OSRAM 371W S+: |
| Effect Wheel | Colorful effect wheel, when the prism comes out,intervene in the effect wheel, there wilbe a colorful prism effect |
| Color Wheel | 14 colors+white |
| Gobo | Fixed gobo:6 gobos+5 beam gobos+ 4 stained glass gobos |
| Power | 445W |
| IP Level | IP45 |
- Product Description
- Download
The waterproof 380 beam moving head light has OSRAM 371W source (13500lm brightness) & 2.2° narrow beam, plus multi-gobos, double prisms, dimming/strobe. It supports 540°/270° movement and IP45 protection. Its high brightness and flexible effects suit large music festivals, theater shows, brand launches & outdoor festivals, fitting indoor precision and semi-outdoor ambiance.
Model: WP380
Channels Mode:16CH/20CH;
Light source: OSRAM 371W S+:
Light source color temperature:7700K;
Life time: 3000 hours;
Light Source Luminous Flux:13500lm;
Rated voltage: AC110-240V~;
Frequency: 50/60Hz;
Current: 4-1.85A;
Power: 445W;
Power factor: PF>0.95:
Control & Screen
Display:1.7inch display,can reverse 180°;
Optical System
Beam angel:2.2°;
Color: 14 colors+white;
Fixed gobo:6 gobos+5 beam gobos+ 4 stained glass gobos;
Effect wheel: Colorful effect wheel, when the prism comes out,intervene in the effect wheel, there wilbe a colorful prism effect;
Double prism: 1 round 8 prism + round 48 prism(8+16+24), with prism superposition function,prism zoomfunction;
Focus: supportlinearfocus;with frost function
Frost: linearatomization function;
Dimming:0-100%electronicdimming;
Strobe: Support mechanical strobe and adjustable speed strobe effect, support strobe macro function;
Optical System
Pan: 540°;8 Bit/16Bit;
Tilt: 270°;8 Bit/16Bit;
IP Rate: lP45;

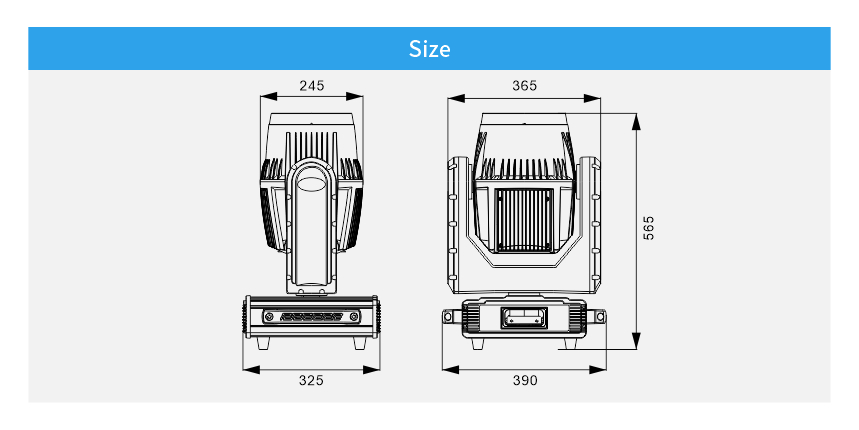

Size & Weight
Product size: 390x325x565 mm;
N.W.: 21 kg;
