Product Specifications
| Model | C8 Mini |
|---|---|
| Bulb Model | 800W White LED Module |
| Effect Wheel | Cutting System: 4-blade Full-range Framing Shutter Module, Framing Rotatable 180° |
| Gobo | 7 Interchangeable Rotating Gobos + White |
| IP Level | IP 20 |
| Size | Product Size: 404 x 302.5 x 705.3 mm |
- Product Description
Model: C8 Mini
Channel Modes: 37CH / 38CH / 41CH
Light Source: 800W White LED Module
Color Temperature: 8000K
LED Lifespan: 20,000 Hours
Output Luminous Flux: 25,158 Im
Beam Aperture: 138 mm
Beam Angle: 7° - 50°
Input Voltage: AC 100-240V
Frequency: 50/60 Hz
Current: 7.6A(110V), 3.8A (220V)
Total Power Consumption: 1040W
Power Factor: PF > 0.95
Display: 2.8 inch Color LCD Touch Screen
Color Wheel: 6 Colors + CRI Filter + CTB Filter + White
CMY System: Infinite CMY Color Mixing, CTO Color Temperature Adjustment (2800K-7500K)
Prism Wheel: Triangular Prism, Bi-directional Variable Speed Rotation

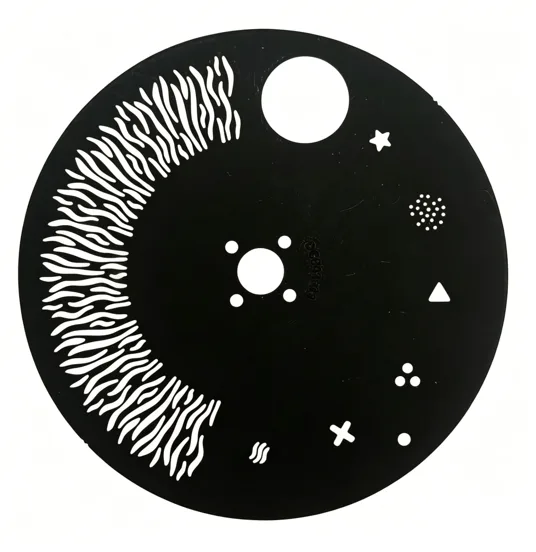

Fixed Gobo Wheel: 6 Static Gobos + White + Texture Effects

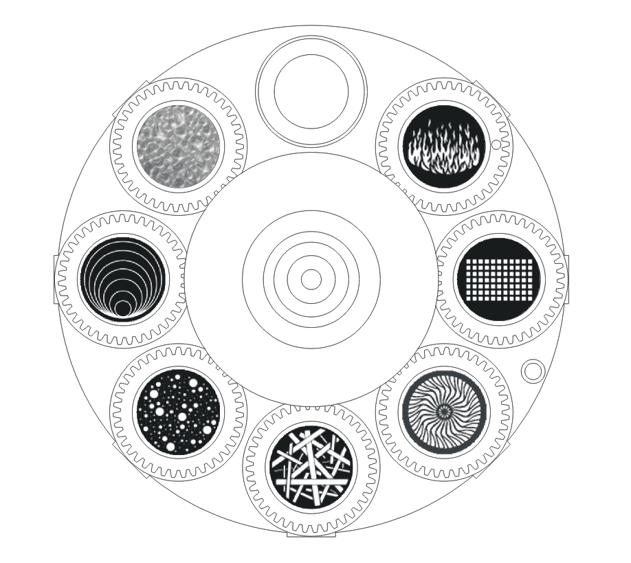

Rotating Gobo Wheel: 7 Interchangeable Rotating Gobos + White

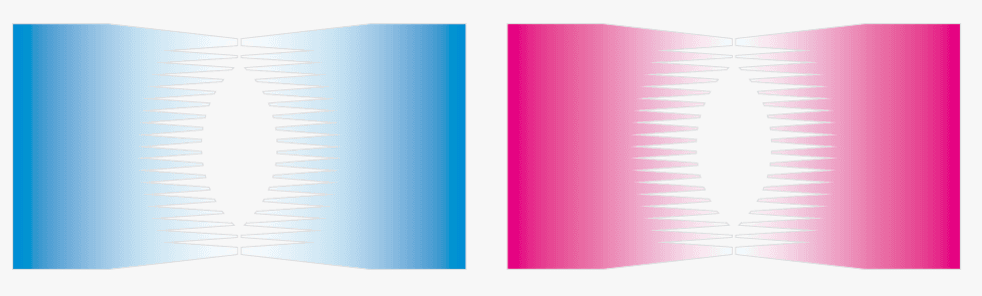

Cutting System: 4-blade Full-range Framing Shutter Module, Framing Rotatable 180°
Frost: 0-100% Linear Frost
Dimmer: 0-100% Linear Dimming
Housing: Engineering Plastic Casing
Control Protocol: DMX512, RDM, Auto Run
Pan: 540°
Tilt: 270°
IP Rating: IP20

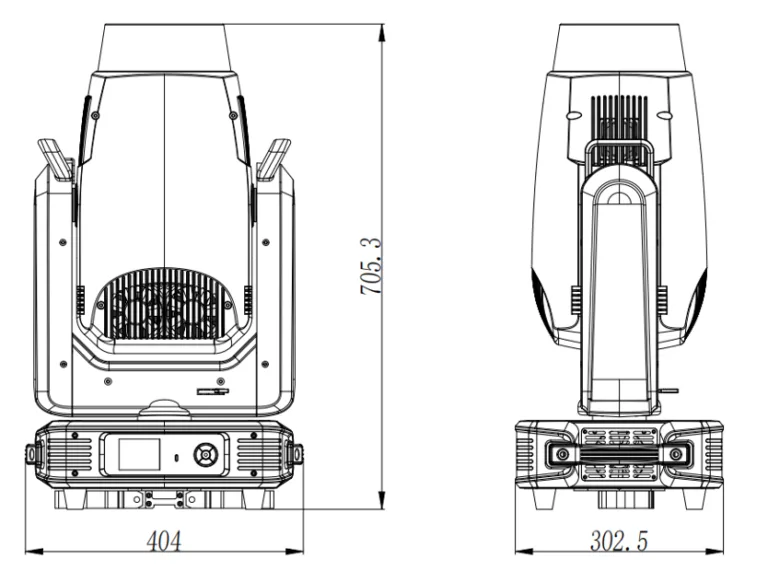

Product Size: 404 x 302.5 x 705.3 mm
NW: 28 KG.
